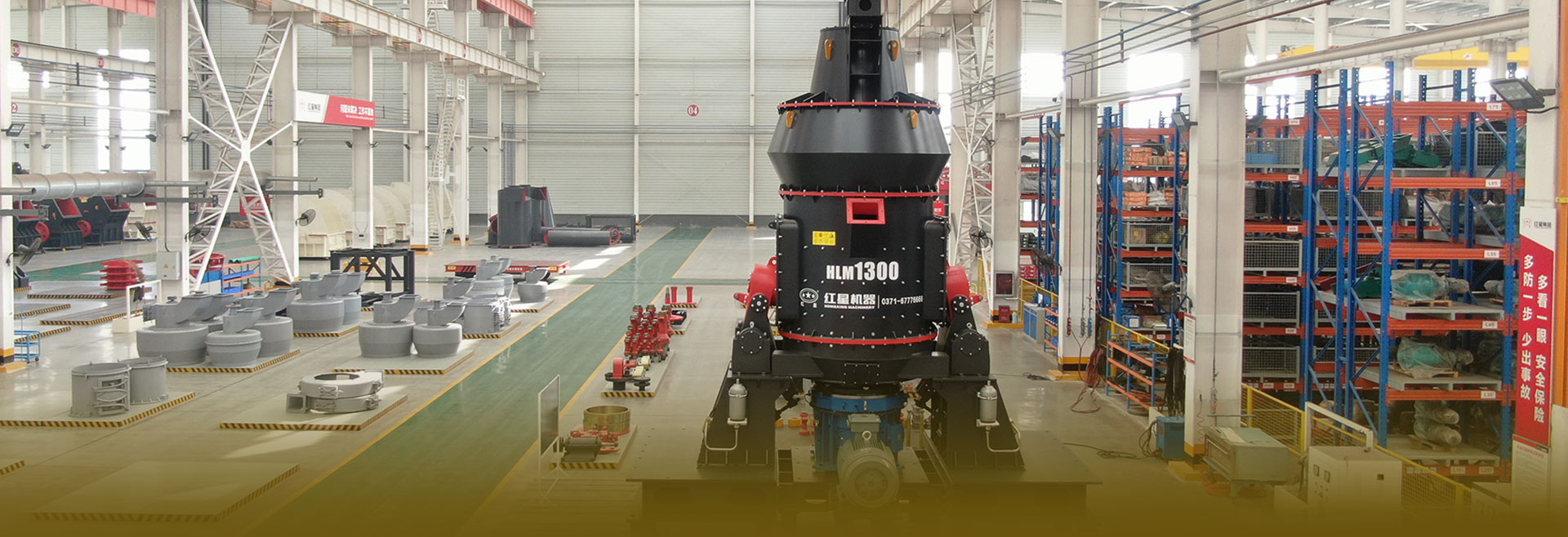

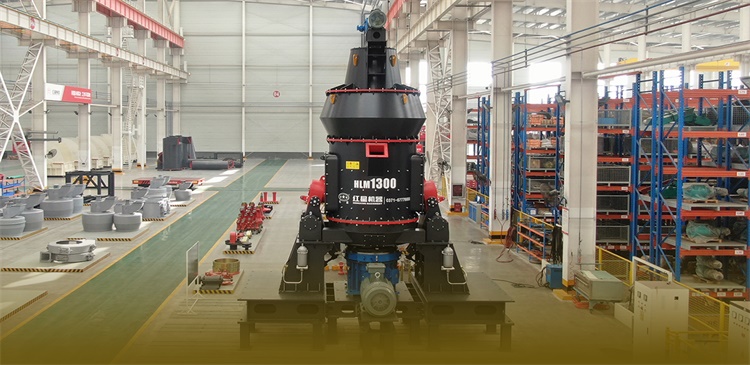

Vertical grinding mill Vertical grinding mill

Vertical grinding mill

Get Price Now

Production capacity: 2-420t/h

Feeding size: ＜15mm

Product Introduction

Vertical grinding mills are large-scale, advanced, efficient, and energy-saving grinding products that integrate grinding, grading, drying, and conveying. They possess independent intellectual property rights, and their core technologies and economic indicators have reached international advanced levels. They are widely used in industries such as cement, building materials, coal energy, iron and steel metallurgy, non-metallic minerals, and power.

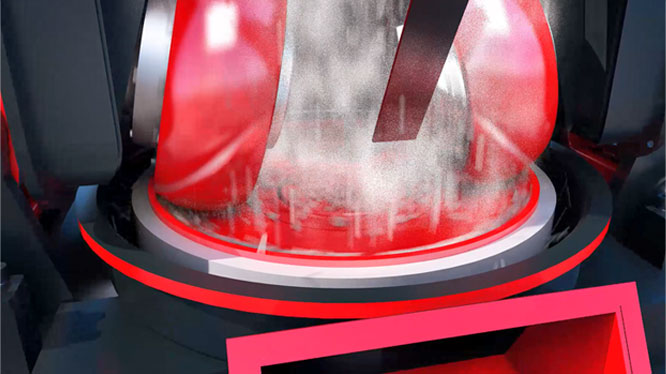

Working principle

The main motor drives the grinding disc to rotate via a reducer, and the fixed grinding rollers rotate along the grinding disc's raceway. The material falls from the feed inlet into the center of the grinding disc. Under the action of centrifugal force, the material moves uniformly from the center of the grinding disc to the edge. When passing through the grinding raceway, it is crushed by the grinding rollers. The grinding force is provided by the hydraulic loading system. Large pieces of material are directly crushed, while fine particles are compressed to form a material bed for intergranular crushing.

Working principle

Advantages and characteristics

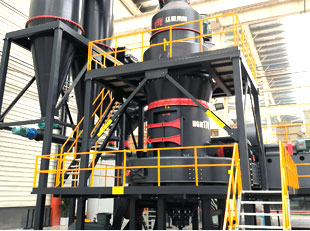

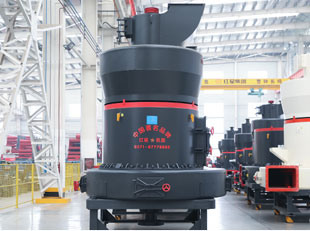

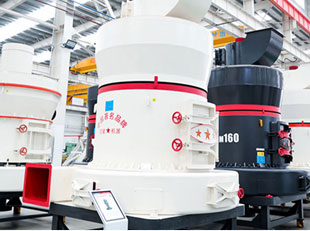

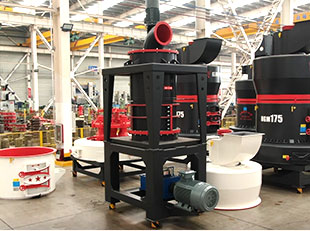

Hot selling products

High-quality products are our core competitiveness

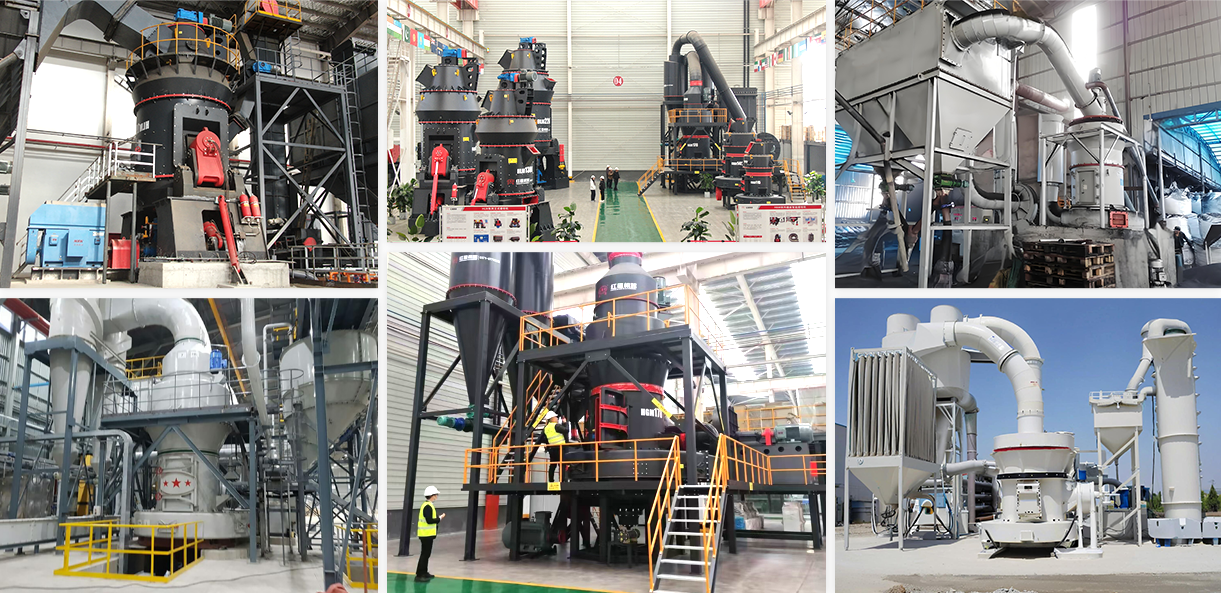

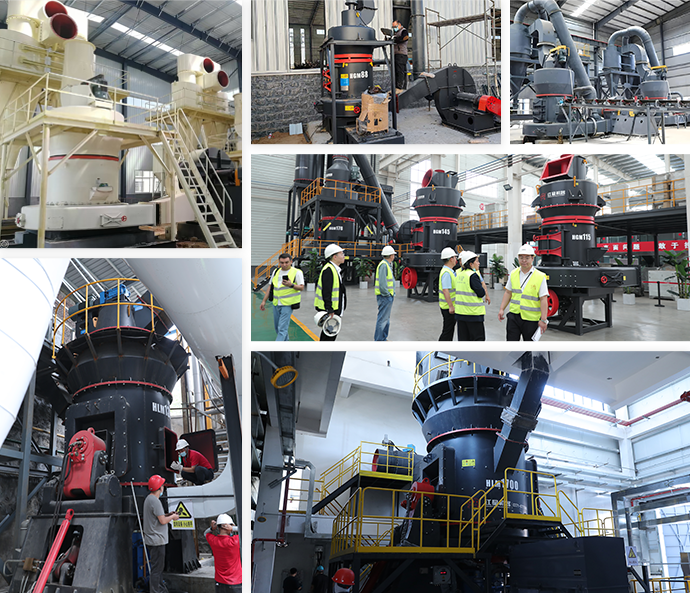

Worldwide Partnership

Our vertical grinding mill have been exported to more than 120 countries, including Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Zambia, South Africa, Uganda, Peru, and Chile.

Product Parameters

HLM Vertical Mining Mill

HLM Cement Vertical Mill

HLM High-Fine Vertical Mill

Specifications Capacity(t/h) The finished product fineness The raw material moisture The finished product moisture Main motor power(kW)
HLM1300K 10-40 0.84-0.37mm (20-400 mesh) ≤15% ≤1% 200
HLM1500K 13-50 280
HLM1700K 18-70 400
HLM1900K 20-85 500
HLM2200K 35-135 800-900
HLM2400K 40-160 900-1120
HLM2800K 50-200 1120-1250
HLM3400K 70-260 1800-2000
HLM3700K 90-320 2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications Capacity(t/h) Main motor power(kW)
HLM1300K 10-40 200
HLM1500K 13-50 280
HLM1700K 18-70 400
HLM1900K 20-85 500
HLM2200K 35-135 800-900
HLM2400K 40-160 900-1120
HLM2800K 50-200 1120-1250
HLM3400K 70-260 1800-2000
HLM3700K 90-320 2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications Capacity(t/h) Specific surface area The raw material moisture The finished product moisture Main motor power(kW)
HLM19S 8-13 ≥380㎡/kg ≤5% ≤1% 280-315
HLM21S 11-18 400-450
HLM24S 15-20 500-560
HLM28S 28-35 900-1000
HLM35S 70-80 1800-2000
HLM42S 95-110 2500-2800
HLM46S 130-150 3150-3800
HLM53S 160-200 4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications Capacity(t/h) Main motor power(kW)
HLM19S 8-13 280-315
HLM21S 11-18 400-450
HLM24S 15-20 500-560
HLM28S 28-35 900-1000
HLM35S 70-80 1800-2000
HLM42S 95-110 2500-2800
HLM46S 130-150 3150-3800
HLM53S 160-200 4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications Feed particle size(mm) Capacity(t/h) Product fineness The raw material moisture Main motor power(kW)
HLM1200X ≤10 2-6 Screen passing rate of 10-40μm 97% ≤4% 132
HLM1300X ≤10 3-10 220
HLM1500X ≤10 4-13 315
HLM1700X ≤15 7-18 450
HLM1900X ≤15 8-23 560
HLM2200X ≤20 13-35 800
HLM2400X ≤20 15-45 1000

Note: Mohs hardness grade 4 or below

Specifications Feed particle size(mm) Capacity(t/h) Main motor power(kW)
HLM1200X ≤10 2-6 132
HLM1300X ≤10 3-10 220
HLM1500X ≤10 4-13 315
HLM1700X ≤15 7-18 450
HLM1900X ≤15 8-23 560
HLM2200X ≤20 13-35 800
HLM2400X ≤20 15-45 1000

Note: Mohs hardness grade 4 or below
