Capacity: 20-1000(t/h)
Feeding Size: ≤1200mm

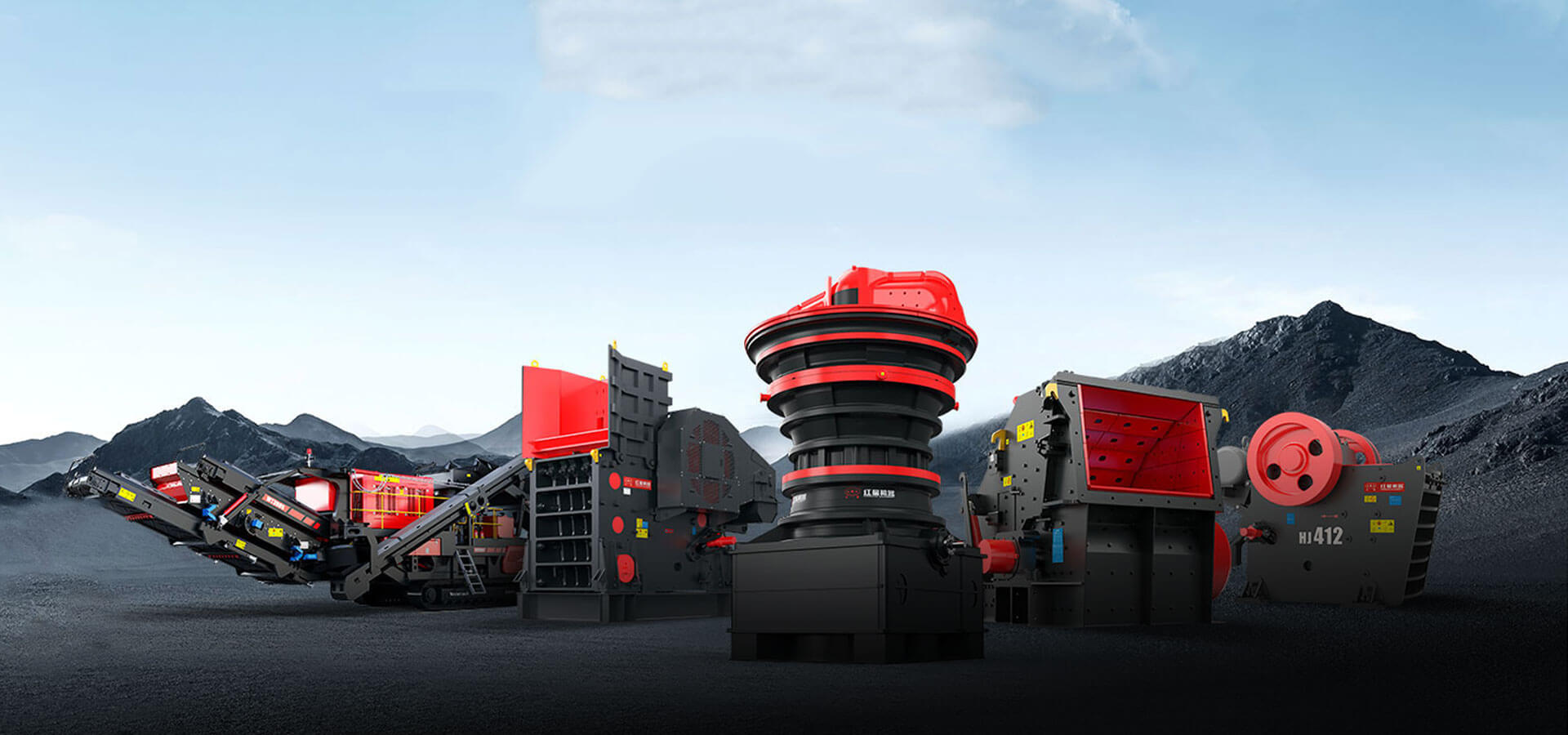

Stone crusher plant usually consists of jaw crusher, impact crusher or cone crusher, vibrating screen, vibrating feeder, belt conveyor, etc. It is used for crushing and screening of over 200 kinds of stones and rocks. used as aggregate in different industries, such as construction, building, road, railway, etc.
It has a wide range of applications and can crush more than 200 kinds of materials.

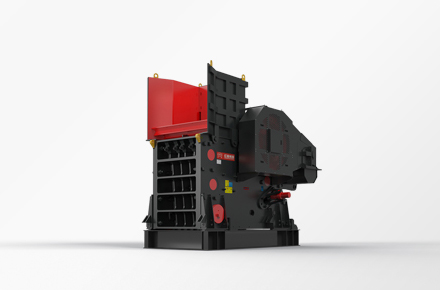

Jaw Crusher

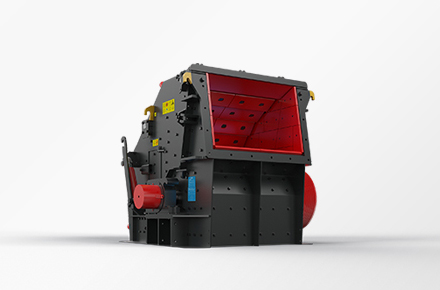

Impact Crusher

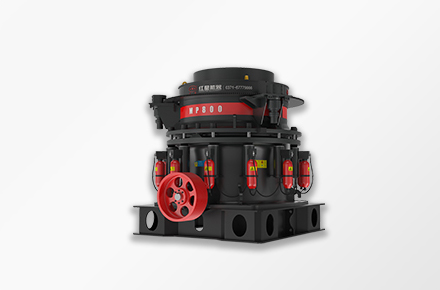

Cone Crusher

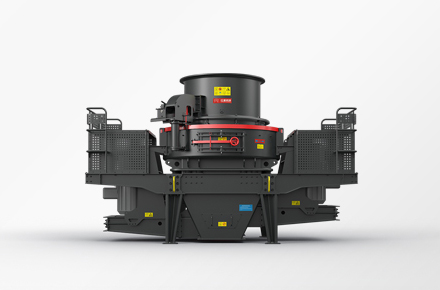

Sand Making Machine

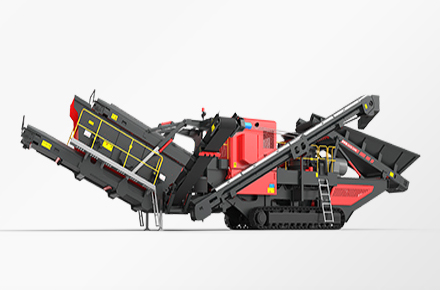

Mobile Crusher

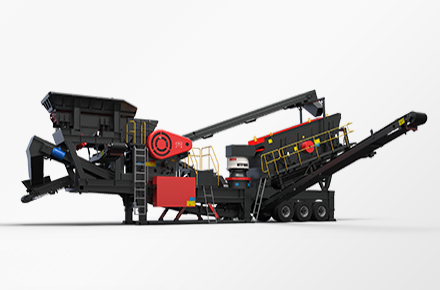

Wheel Type Mobile Crusher

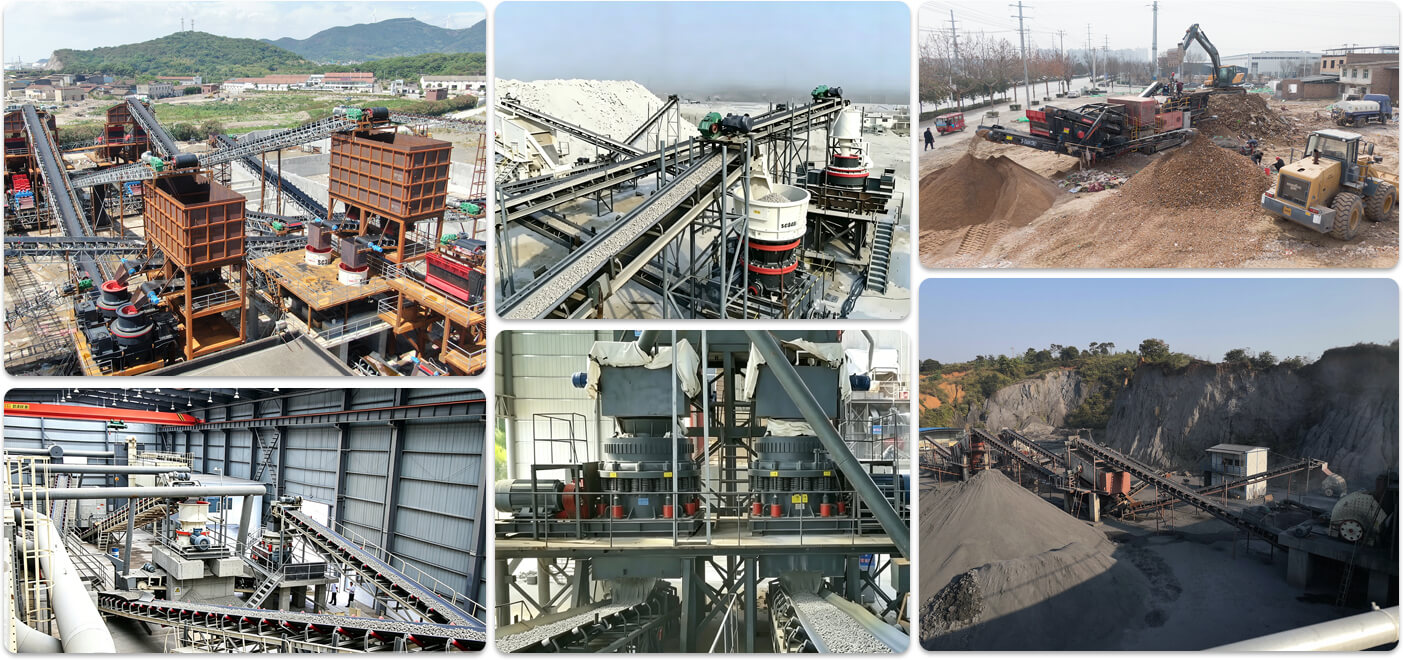

A Single-Source Turnkey Solution.We supply a complete set of equipment for sand and gravel production lines, offering a comprehensive selection of models including jaw crushers, cone crushers, and impact crushers.
According to material abrasiveness and hardness factor, dimensions,finished grain size, capacity, suitable stone crusher type could be offered.
Heavy-duty designed stone crusher frame. It crushes rocks, other hard and abrasive materials in highly efficiency. High productivity low maintenance and operating costs.
Primary crusher reduces the raw material to 150mm around,then secondary or tertiary crushers depending on the size requirement.
Jaw crusher
VSI Crusher
Multi-cylinder cone crusher
| Model | Feed opening size(mm） | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions（L×W×H） (mm) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 268 | 4P 5.5 | 760×700×860 |
| PE 200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 915×780×990 |
| PE 200×350 | 200×350 | 180 | 18-60 | 3-10 | 276 | 4P 11 | 1000×914×1112 |
| PE 250×400 | 250×400 | 210 | 20-70 | 5-21 | 300 | 6P 15 | 1100×1032×1285 |
| PE 400×600 | 400×600 | 340 | 40-100 | 16-64 | 270 | 6P 30 | 1623×1736×1615 |
| PE 500×750 | 500×750 | 425 | 50-100 | 40-110 | 268 | 6P 55 | 1920×1850×1920 |
| PE 600×750 | 600×750 | 500 | 150-200 | 80-240 | 268 | 6P 55 | 2020×1850×1920 |
| PE 600×900 | 600×900 | 500 | 65-160 | 50-160 | 254 | 6P 55 | 2530×1900×2340 |
| PE 750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 245 | 8P 110 | 2680×2380×2785 |
| PE 900×1200 | 900×1200 | 750 | 100-200 | 220-380 | 208 | 8P 110 | 3470×2876×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 400-1000 | 180 | 8P 160-245 | 4850×3220×3680 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1200 | 180 | 8P 280-380 | 5160×3660×4248 |
| PEX 150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1170×1575×1030 |
| PEX 250×750 | 250×750 | 210 | 25-60 | 13-35 | 320 | 6P 22 | 1550×1730×1470 |
| PEX 250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1580×2006×1390 |
| PEX 250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 1780×2214×1430 |
| PEX 300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max.Feeding size (mm) | Capacity (t/h) |
| PE 150×250 | 125 | 1-3 |
| PE 200×300 | 180 | 2-6 |
| PE 200×350 | 180 | 3-10 |
| PE 250×400 | 210 | 5-21 |
| PE 400×600 | 340 | 16-64 |
| PE 500×750 | 425 | 40-110 |
| PE 600×750 | 500 | 80-240 |
| PE 600×900 | 500 | 50-160 |
| PE 750×1060 | 630 | 110-320 |
| PE 900×1200 | 750 | 220-380 |
| PE 1200×1500 | 1020 | 400-1000 |
| PE 1500×1800 | 1200 | 500-1200 |
| PEX 150×750 | 120 | 8-25 |
| PEX 250×750 | 210 | 13-35 |
| PEX 250×1000 | 210 | 16-52 |
| PEX 250×1200 | 210 | 20-61 |
| PEX 300×1300 | 250 | 16-105 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | VSI 7611 | VSI 8518 | VSI 9526 | VSI 1140 | VSI 1145 | VSI 1150 | |
| Capacity (t/h) | Feed both at center and sides | 80-180 | 140-260 | 200-380 | 300-520 | 350-610 | 360-650 |
| Feed at center | 40-90 | 70-130 | 100-190 | 160-260 | 180-355 | 190-365 | |
| Max.feeding size （mm） | Soft material | 35 | 40 | 45 | 50 | 50 | 50 |
| Hard material | 30 | 35 | 40 | 40 | 45 | 45 | |
| Rotation speed（r/min） | 1700-1890 | 1520-1690 | 1360-1510 | 1150-1300 | 1150-1300 | 1150-1300 | |
| Motor power（kw） | 4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 440 | 4P 500 | |
| Overall dimension（L×W×H）（mm） | 4100×2250×2300 | 4160×2360×2500 | 4540×2500×2830 | 5500×2750×3100 | 5500×2750×3100 | 5500×2750×3100 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Capacity(t/h) | |
| Feed both at center and sides | Feed at center | |
| VSI 7611 | 80-180 | 40-90 |
| VSI 8518 | 140-260 | 70-130 |
| VSI 9526 | 200-380 | 100-190 |
| VSI 1140 | 300-520 | 160-260 |
| VSI 1145 | 350-610 | 180-355 |
| VSI 1150 | 360-650 | 190-365 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Max.Feeding Size(mm) | Minimum Discharging Size(mm) | Processing Capacity(t/h) | Speed(r/m) | Power(kW) |
| HPM200 | C1 | 185 | 19 | 150-250 | 750-1200 | 160 |
| C2 | 125 | 17 | 140-250 | |||
| C3 | 95 | 13 | 120-250 | |||
| F1 | 76 | 10 | 90-210 | |||
| F2 | 54 | 6 | 80-210 | |||
| F3 | 23 | 5 | 70-210 | |||
| F4 | 10 | 6 | 80-210 | |||
| HPM300 | C1 | 235 | 25 | 230-445 | 700-1200 | 220 |
| C2 | 211 | 19 | 200-445 | |||
| C3 | 150 | 17 | 180-445 | |||
| C4 | 107 | 13 | 150-445 | |||
| F1 | 77 | 10 | 115-260 | |||
| F2 | 53 | 8 | 110-260 | |||
| F3 | 22 | 6 | 105-260 | |||
| F4 | 25 | 6 | 105-260 | |||
| HPM400 | C1 | 299 | 30 | 315-630 | 700-1000 | 315 |
| C2 | 252 | 25 | 295-630 | |||
| C3 | 198 | 20 | 260-630 | |||
| C4 | 111 | 14 | 190-630 | |||
| F1 | 92 | 10 | 140-370 | |||
| F2 | 52 | 8 | 130-370 | |||
| F3 | 51 | 6 | 120-370 | |||
| F4 | 52 | 6 | 120-370 | |||
| HPM500 | C1 | 335 | 30 | 390-790 | 700-950 | 400 |
| C2 | 286 | 25 | 365-790 | |||
| C3 | 204 | 20 | 325-790 | |||
| C4 | 133 | 16 | 280-790 | |||
| F1 | 95 | 13 | 230-450 | |||
| F2 | 57 | 10 | 175-450 | |||
| F3 | 52 | 8 | 165-450 | |||
| F4 | 53 | 6 | 155-450 | |||
| HPM650 | C1 | 328 | 30 | 386-790 | 590-930 | 500 |
| C2 | 279 | 25 | 348-790 | |||
| C3 | 196 | 20 | 300-790 | |||
| F1 | 106 | 13 | 280-530 | |||
| F2 | 52 | 9 | 220-530 | |||
| HPM800 | C1 | 353 | 32 | 545-1100 | 700-950 | 630 |
| C2 | 297 | 32 | 545-1100 | |||
| C3 | 267 | 25 | 495-1100 | |||
| C4 | 219 | 16 | 385-1100 | |||
| F1 | 155 | 13 | 325-730 | |||
| F2 | 92 | 10 | 260-730 | |||
| F3 | 33 | 5 | 200-730 |
| Model | Cavities | Max.Feeding Size(mm) |
Processing Capacity(t/h) |
| HPM200 | C1 | 185 | 150-250 |
| C2 | 125 | 140-250 | |
| C3 | 95 | 120-250 | |
| F1 | 76 | 90-210 | |
| F2 | 54 | 80-210 | |
| F3 | 23 | 70-210 | |
| F4 | 10 | 80-210 | |
| HPM300 | C1 | 235 | 230-445 |
| C2 | 211 | 200-445 | |
| C3 | 150 | 180-445 | |
| C4 | 107 | 150-445 | |
| F1 | 77 | 115-260 | |
| F2 | 53 | 110-260 | |
| F3 | 22 | 105-260 | |
| F4 | 25 | 105-260 | |
| HPM400 | C1 | 299 | 315-630 |
| C2 | 252 | 295-630 | |
| C3 | 198 | 260-630 | |
| C4 | 111 | 190-630 | |
| F1 | 92 | 140-370 | |
| F2 | 52 | 130-370 | |
| F3 | 51 | 120-370 | |
| F4 | 52 | 120-370 | |
| HPM500 | C1 | 335 | 390-790 |
| C2 | 286 | 365-790 | |
| C3 | 204 | 325-790 | |
| C4 | 133 | 280-790 | |
| F1 | 95 | 230-450 | |
| F2 | 57 | 175-450 | |
| F3 | 52 | 165-450 | |
| F4 | 53 | 155-450 | |
| HPM650 | C1 | 328 | 386-790 |
| C2 | 279 | 348-790 | |
| C3 | 196 | 300-790 | |
| F1 | 106 | 280-530 | |
| F2 | 52 | 220-530 | |
| HPM800 | C1 | 353 | 545-1100 |
| C2 | 297 | 545-1100 | |
| C3 | 267 | 495-1100 | |
| C4 | 219 | 385-1100 | |
| F1 | 155 | 325-730 | |
| F2 | 92 | 260-730 | |
| F3 | 33 | 200-730 |
