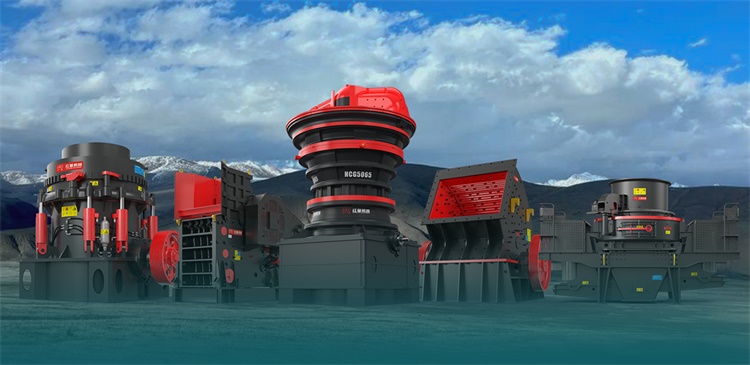

Stone crusher Stone crusher

Stone Crusher

Get Price Now

Production capacity: 5-800t/h

Feeding size: Depends on the process

Product Introduction

With 40 years of technological expertise, our company is a leading brand in China's mining machinery industry. Our professional solution design team conducts in-depth material analysis to tailor scientific, intelligent, and environmentally friendly production line configurations to your needs! We provide EPC project turnkey services, taking full responsibility for transportation, installation, equipment commissioning, production guidance, and equipment maintenance, ensuring a worry-free and effortless factory construction experience!

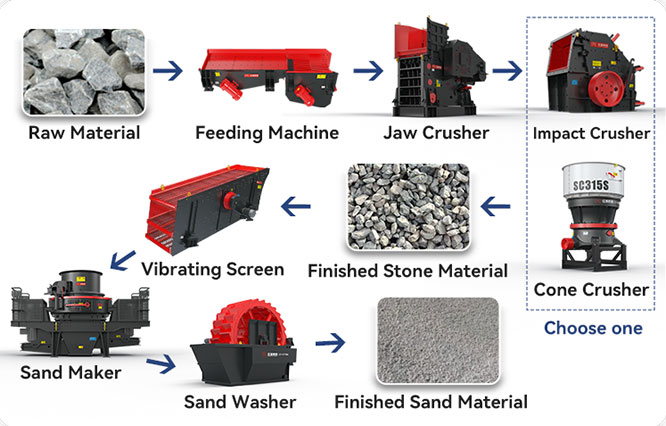

Equipment Composition

The equipment consists of a feeder, jaw crusher, impact crusher, cone crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor, and centralized electrical control system.

Equipment Composition

Advantages

Hot selling products

High-quality products are our core competitiveness

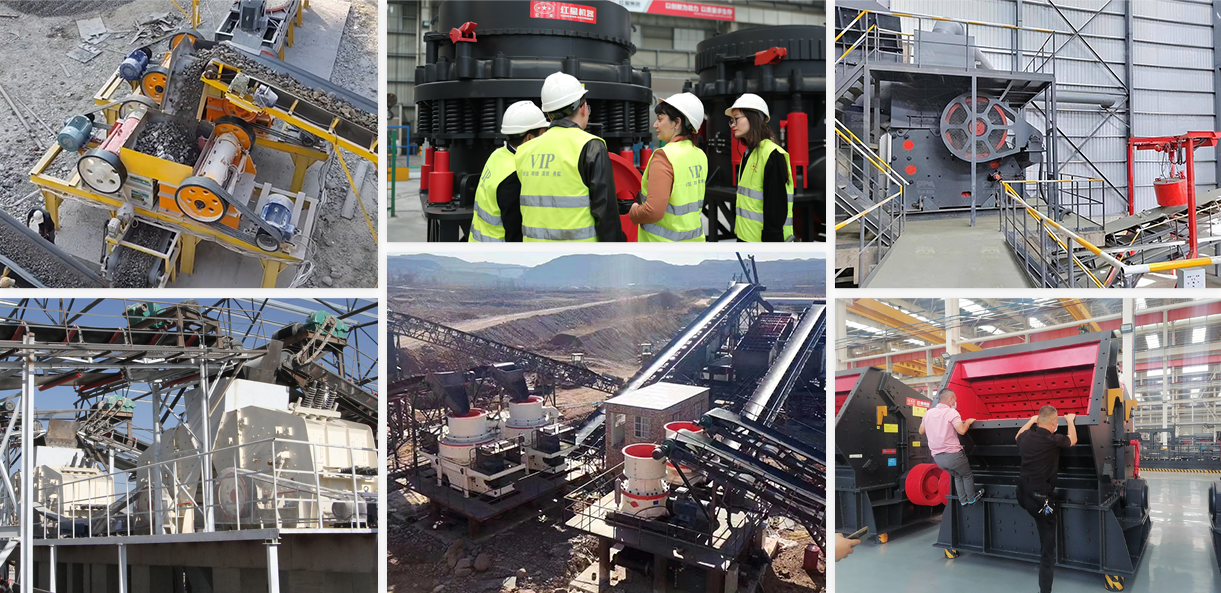

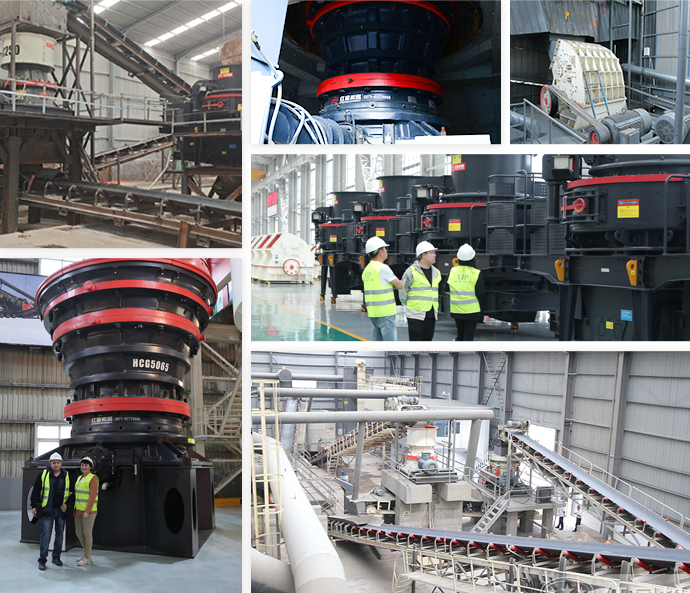

Worldwide Partnership

Our vertical grinding mill have been exported to more than 120 countries, including Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Zambia, South Africa, Uganda, Peru, and Chile.

Product Parameters

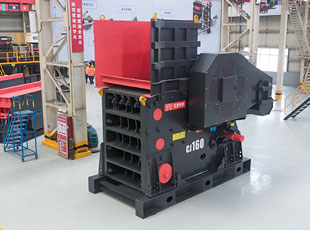

Jaw crusher

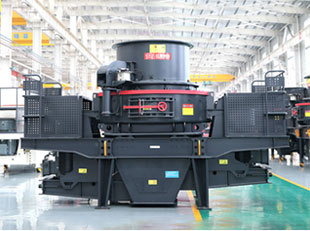

VSI Crusher

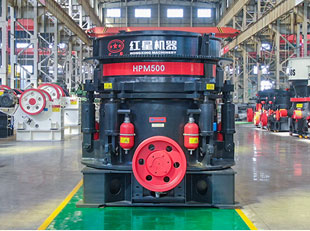

Multi-cylinder cone crusher

Model Feed opening size(mm） Max.Feeding size (mm) Adjustment range of discharge port (mm) Capacity(t/h) Rotation speed of eccentric shaft(r/min) Power (kw) Dimensions（L×W×H） (mm)
PE 150×250 150×250 125 10-40 1-3 268 4P   5.5 760×700×860
PE 200×300 200×300 180 15-50 2-6 260 4P   7.5 915×780×990
PE 200×350 200×350 180 18-60 3-10 276 4P   11 1000×914×1112
PE 250×400 250×400 210 20-70 5-21 300 6P   15 1100×1032×1285
PE 400×600 400×600 340 40-100 16-64 270 6P   30 1623×1736×1615
PE 500×750 500×750 425 50-100 40-110 268 6P   55 1920×1850×1920
PE 600×750 600×750 500 150-200 80-240 268 6P   55 2020×1850×1920
PE 600×900 600×900 500 65-160 50-160 254 6P   55 2530×1900×2340
PE 750×1060 750×1060 630 80-180 110-320 245 8P   110 2680×2380×2785
PE 900×1200 900×1200 750 100-200 220-380 208 8P   110 3470×2876×3330
PE1200×1500 1200×1500 1020 150-350 400-1000 180 8P   160-245 4850×3220×3680
PE1500×1800 1500×1800 1200 220-350 500-1200 180 8P   280-380 5160×3660×4248
PEX 150×750 150×750 120 18-48 8-25 320 4P   15 1170×1575×1030
PEX 250×750 250×750 210 25-60 13-35 320 6P   22 1550×1730×1470
PEX 250×1000 250×1000 210 25-60 16-52 330 6P   30 1580×2006×1390
PEX 250×1200 250×1200 210 25-60 20-61 330 6P   37 1780×2214×1430
PEX 300×1300 300×1300 250 20-90 16-105 300 6P   55 2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Max.Feeding size (mm) Capacity (t/h)
PE 150×250 125 1-3
PE 200×300 180 2-6
PE 200×350 180 3-10
PE 250×400 210 5-21
PE 400×600 340 16-64
PE 500×750 425 40-110
PE 600×750 500 80-240
PE 600×900 500 50-160
PE 750×1060 630 110-320
PE 900×1200 750 220-380
PE 1200×1500 1020 400-1000
PE 1500×1800 1200 500-1200
PEX 150×750 120 8-25
PEX 250×750 210 13-35
PEX 250×1000 210 16-52
PEX 250×1200 210 20-61
PEX 300×1300 250 16-105

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1150
Capacity
(t/h)		 Feed both at center and sides 80-180 140-260 200-380 300-520 350-610 360-650
Feed at center 40-90 70-130 100-190 160-260 180-355 190-365
Max.feeding size
（mm）		 Soft material 35 40 45 50 50 50
Hard material 30 35 40 40 45 45
Rotation speed（r/min） 1700-1890 1520-1690 1360-1510 1150-1300 1150-1300 1150-1300
Motor power（kw） 4P   110 4P   180 4P   264 4P   400 4P   440 4P   500
Overall dimension（L×W×H）（mm） 4100×2250×2300 4160×2360×2500 4540×2500×2830 5500×2750×3100 5500×2750×3100 5500×2750×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity(t/h)
Feed both at center and sides Feed at center
VSI 7611 80-180 40-90
VSI 8518 140-260 70-130
VSI 9526 200-380 100-190
VSI 1140 300-520 160-260
VSI 1145 350-610 180-355
VSI 1150 360-650 190-365

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cavities Max.Feeding Size(mm) Minimum Discharging Size(mm) Processing Capacity(t/h) Speed(r/m) Power(kW)
HPM200 C1 185 19 150-250 750-1200 160
C2 125 17 140-250
C3 95 13 120-250
F1 76 10 90-210
F2 54 6 80-210
F3 23 5 70-210
F4 10 6 80-210
HPM300 C1 235 25 230-445 700-1200 220
C2 211 19 200-445
C3 150 17 180-445
C4 107 13 150-445
F1 77 10 115-260
F2 53 8 110-260
F3 22 6 105-260
F4 25 6 105-260
HPM400 C1 299 30 315-630 700-1000 315
C2 252 25 295-630
C3 198 20 260-630
C4 111 14 190-630
F1 92 10 140-370
F2 52 8 130-370
F3 51 6 120-370
F4 52 6 120-370
HPM500 C1 335 30 390-790 700-950 400
C2 286 25 365-790
C3 204 20 325-790
C4 133 16 280-790
F1 95 13 230-450
F2 57 10 175-450
F3 52 8 165-450
F4 53 6 155-450
HPM650 C1 328 30 386-790 590-930 500
C2 279 25 348-790
C3 196 20 300-790
F1 106 13 280-530
F2 52 9 220-530
HPM800 C1 353 32 545-1100 700-950 630
C2 297 32 545-1100
C3 267 25 495-1100
C4 219 16 385-1100
F1 155 13 325-730
F2 92 10 260-730
F3 33 5 200-730
Model Cavities Max.Feeding
Size(mm)		 Processing
Capacity(t/h)
HPM200 C1 185 150-250
C2 125 140-250
C3 95 120-250
F1 76 90-210
F2 54 80-210
F3 23 70-210
F4 10 80-210
HPM300 C1 235 230-445
C2 211 200-445
C3 150 180-445
C4 107 150-445
F1 77 115-260
F2 53 110-260
F3 22 105-260
F4 25 105-260
HPM400 C1 299 315-630
C2 252 295-630
C3 198 260-630
C4 111 190-630
F1 92 140-370
F2 52 130-370
F3 51 120-370
F4 52 120-370
HPM500 C1 335 390-790
C2 286 365-790
C3 204 325-790
C4 133 280-790
F1 95 230-450
F2 57 175-450
F3 52 165-450
F4 53 155-450
HPM650 C1 328 386-790
C2 279 348-790
C3 196 300-790
F1 106 280-530
F2 52 220-530
HPM800 C1 353 545-1100
C2 297 545-1100
C3 267 495-1100
C4 219 385-1100
F1 155 325-730
F2 92 260-730
F3 33 200-730
