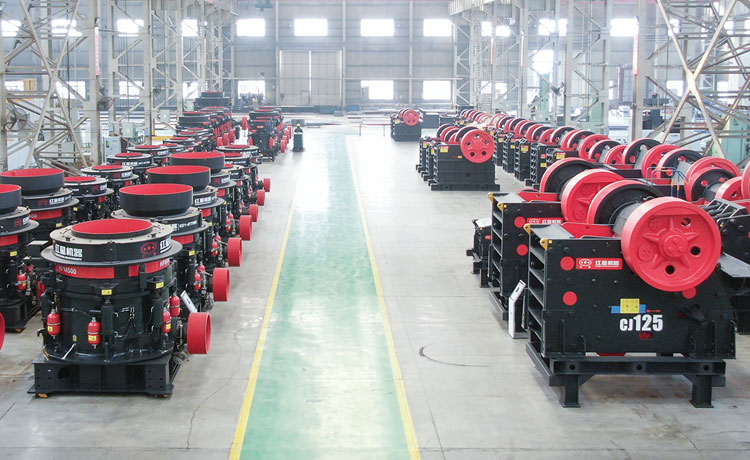

Stone Crushers

Stone Crushers

Stone crusher is widely used in quarry and mining industry. The stone crushing machine can crush large rocks and medium-sized rocks for more efficient and easier handling size, such as sand, gravels, aggregates. According to different processing effects, it can be divided into coarse crushing, medium crushing and fine crushing equipment.

Feed Size: 100-1200mm

Capacity: 5-2000(t/h)

Chat Online Free Quotation
Selection & Quote Production Process Advantages Customer Cases Technical Parameters Contact Us

Processing Materials

Application fields: suitable for mining, ore crushing, slag crushing, building materials, highways, railways, water conservancy and hydropower and chemical industry production. Applicable materials: basalt, slag, limestone, coal, limestone, quartz, marble, bluestone, potassium feldspar, etc.

Processing Materials of Stone Crushers

Stone Crusher Selection & Quote

According to your production, raw materials, raw material size, and output requirements, our engineers can develop a more suitable equipment plan for you free of charge.

Production Process

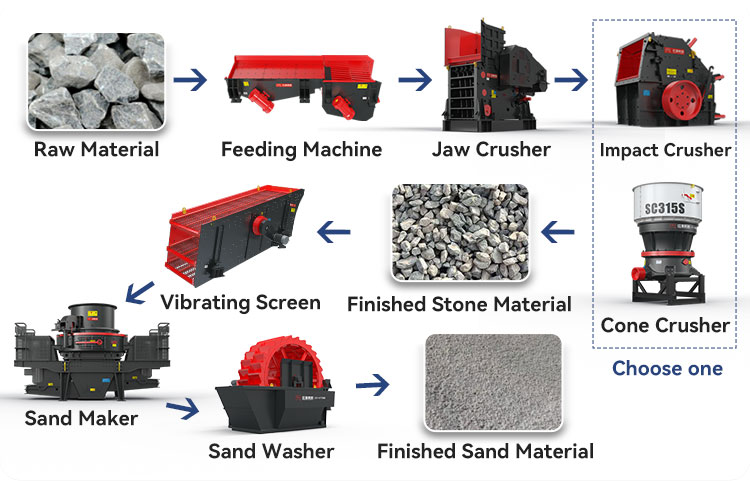

Stone crusher plant usually consists of jaw crusher, impact crusher or cone crusher, vibrating screen, vibrating feeder, belt conveyor, etc. It is used for crushing and screening of over 120 kinds of stones and rocks. used as aggregate in different industries, such as construction, building, road, railway, etc.

Advantages of Stone Crusher

  • Complete Sand & Gravel Plant: A Single-Source Turnkey Solution

    We supply a complete set of equipment for sand and gravel production lines, offering a comprehensive selection of models including jaw crushers, cone crushers, and impact crushers.

  • Customized Design

    According to material abrasiveness and hardness factor, dimensions, finished grain size, capacity, suitable stone crusher type could be offered.

  • High Quality

    Heavy-duty designed stone crusher frame. It crushes rocks, other hard and abrasive materials in highly efficiency. High productivity low maintenance and operating costs.

  • Good Performance

    Primary crusher reduces the raw material to 150 mm around, then secondary or tertiary crushers depending on the size requirement.

Advantages of Stone Crusher

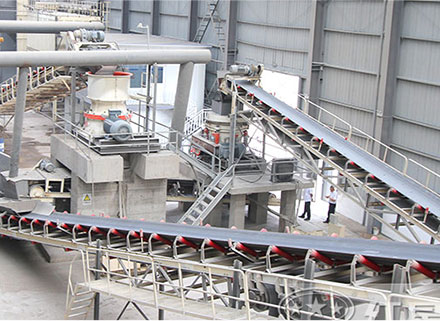

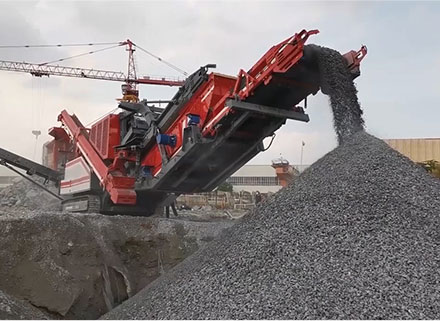

Real Customer Cases

Product Parameters

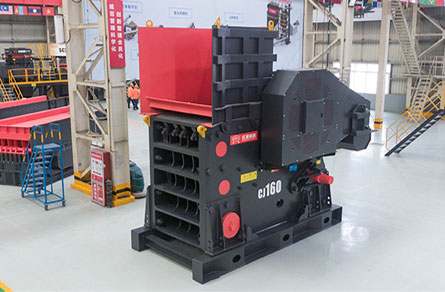

PE/PEX Jaw Crusher

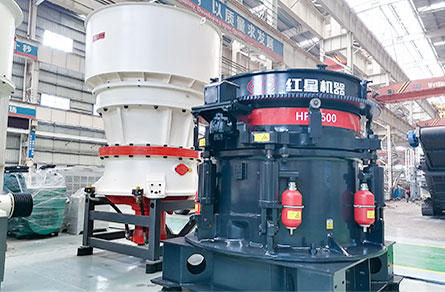

HPM Multi-Cylinder Hydraulic Cone Crusher

PF Series Impact Crusher

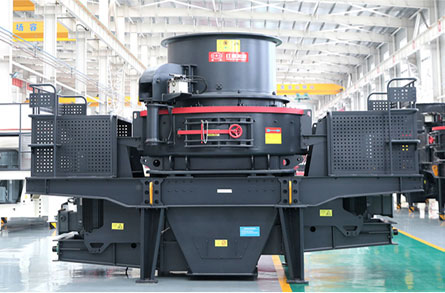

HVI Series Sand Making Machine

Model Feed opening size(mm） Max.Feeding size (mm) Adjustment range of discharge port (mm) Capacity(t/h) Rotation speed of eccentric shaft(r/min) Power (kw) Dimensions（L×W×H） (mm)
PE 150×250 150×250 125 10-40 1-3 268 4P   5.5 760×700×860
PE 200×300 200×300 180 15-50 2-6 260 4P   7.5 915×780×990
PE 200×350 200×350 180 18-60 3-10 276 4P   11 1000×914×1112
PE 250×400 250×400 210 20-70 5-21 300 6P   15 1100×1032×1285
PE 400×600 400×600 340 40-100 16-64 270 6P   30 1623×1736×1615
PE 500×750 500×750 425 50-100 40-110 268 6P   55 1920×1850×1920
PE 600×750 600×750 500 150-200 80-240 268 6P   55 2020×1850×1920
PE 600×900 600×900 500 65-160 50-160 254 6P   55 2530×1900×2340
PE 750×1060 750×1060 630 80-180 110-320 245 8P   110 2680×2380×2785
PE 900×1200 900×1200 750 100-200 220-380 208 8P   110 3470×2876×3330
PE1200×1500 1200×1500 1020 150-350 400-1000 180 8P   160-245 4850×3220×3680
PE1500×1800 1500×1800 1200 220-350 500-1200 180 8P   280-380 5160×3660×4248
PEX 150×750 150×750 120 18-48 8-25 320 4P   15 1170×1575×1030
PEX 250×750 250×750 210 25-60 13-35 320 6P   22 1550×1730×1470
PEX 250×1000 250×1000 210 25-60 16-52 330 6P   30 1580×2006×1390
PEX 250×1200 250×1200 210 25-60 20-61 330 6P   37 1780×2214×1430
PEX 300×1300 300×1300 250 20-90 16-105 300 6P   55 2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Max.Feeding size (mm) Capacity (t/h)
PE 150×250 125 1-3
PE 200×300 180 2-6
PE 200×350 180 3-10
PE 250×400 210 5-21
PE 400×600 340 16-64
PE 500×750 425 40-110
PE 600×750 500 80-240
PE 600×900 500 50-160
PE 750×1060 630 110-320
PE 900×1200 750 220-380
PE 1200×1500 1020 400-1000
PE 1500×1800 1200 500-1200
PEX 150×750 120 8-25
PEX 250×750 210 13-35
PEX 250×1000 210 16-52
PEX 250×1200 210 20-61
PEX 300×1300 250 16-105

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cavities Max.Feeding Size(mm) Minimum Discharging Size(mm) Processing Capacity(t/h) Speed(r/m) Power(kW)
HPM200 C1 185 19 150-250 750-1200 160
C2 125 17 140-250
C3 95 13 120-250
F1 76 10 90-210
F2 54 6 80-210
F3 23 5 70-210
F4 10 6 80-210
HPM300 C1 235 25 230-445 700-1200 220
C2 211 19 200-445
C3 150 17 180-445
C4 107 13 150-445
F1 77 10 115-260
F2 53 8 110-260
F3 22 6 105-260
F4 25 6 105-260
HPM400 C1 299 30 315-630 700-1000 315
C2 252 25 295-630
C3 198 20 260-630
C4 111 14 190-630
F1 92 10 140-370
F2 52 8 130-370
F3 51 6 120-370
F4 52 6 120-370
HPM500 C1 335 30 390-790 700-950 400
C2 286 25 365-790
C3 204 20 325-790
C4 133 16 280-790
F1 95 13 230-450
F2 57 10 175-450
F3 52 8 165-450
F4 53 6 155-450
HPM650 C1 328 30 386-790 590-930 500
C2 279 25 348-790
C3 196 20 300-790
F1 106 13 280-530
F2 52 9 220-530
HPM800 C1 353 32 545-1100 700-950 630
C2 297 32 545-1100
C3 267 25 495-1100
C4 219 16 385-1100
F1 155 13 325-730
F2 92 10 260-730
F3 33 5 200-730
Model Cavities Max.Feeding
Size(mm)		 Processing
Capacity(t/h)
HPM200 C1 185 150-250
C2 125 140-250
C3 95 120-250
F1 76 90-210
F2 54 80-210
F3 23 70-210
F4 10 80-210
HPM300 C1 235 230-445
C2 211 200-445
C3 150 180-445
C4 107 150-445
F1 77 115-260
F2 53 110-260
F3 22 105-260
F4 25 105-260
HPM400 C1 299 315-630
C2 252 295-630
C3 198 260-630
C4 111 190-630
F1 92 140-370
F2 52 130-370
F3 51 120-370
F4 52 120-370
HPM500 C1 335 390-790
C2 286 365-790
C3 204 325-790
C4 133 280-790
F1 95 230-450
F2 57 175-450
F3 52 165-450
F4 53 155-450
HPM650 C1 328 386-790
C2 279 348-790
C3 196 300-790
F1 106 280-530
F2 52 220-530
HPM800 C1 353 545-1100
C2 297 545-1100
C3 267 495-1100
C4 219 385-1100
F1 155 325-730
F2 92 260-730
F3 33 200-730
Model Specifications(mm) Feed Openting(mm) Maximum Feeding size（mm） Capacity（t/h） Power（KW） Dimensions L×W×H（mm）
PF1007 ø 1000×700 400×730 300 30-70 4P 37-45 2330×1660×2300
PF1010 ø 1000×1050 400×1080 350 50-90 4P 45-55 2370×1700×2390
PF1210 ø 1250×1050 400×1080 350 70-130 6P 110 2680×2160×2800
PF1214 ø 1250×1400 400×1430 350 80-180 6P 132 2650×2460×2800
PF1315 ø 1320×1500 860×1520 500 100-280 6P 200 3180×2720×3120
PF1320 ø 1320×2000 993×2000 500 140-380 6P 250 3220×3100×3120
PF1520 ø 1500×2000 830×2040 700 200-550 4P 315-400 3959×3564×3330
PF1820 ø 1800×2000 1260×2040 800 300-800 6P 630-710 4400×3866×4009

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Specifications(mm) Feed Openting(mm) Maximum Feeding size（mm） Capacity（t/h） Power（KW） Dimensions L×W×H（mm）
PF1007 ø 1000×700 400×730 300 30-70 4P 37-45 2330×1660×2300
PF1010 ø 1000×1050 400×1080 350 50-90 4P 45-55 2370×1700×2390
PF1210 ø 1250×1050 400×1080 350 70-130 6P 110 2680×2160×2800
PF1214 ø 1250×1400 400×1430 350 80-180 6P 132 2650×2460×2800
PF1315 ø 1320×1500 860×1520 500 100-280 6P 200 3180×2720×3120
PF1320 ø 1320×2000 993×2000 500 140-380 6P 250 3220×3100×3120
PF1520 ø 1500×2000 830×2040 700 200-550 4P 315-400 3959×3564×3330
PF1820 ø 1800×2000 1260×2040 800 300-800 6P 630-710 4400×3866×4009

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Hard material Soft material Sand Shaping Sand Making Motor Power（kw）
Max.Feeding Size （mm） Throughput（t/h）
HVI 0815  <30 <35  50-140  90-230  2×75
HVI 0818 <30 <35 60-190 110-283 2×90
HVI 0922 <35 <40 70-210 150-330 2×110
HVI 0926 <35 <40 85-240 170-380 2×132
HVI 1032 <40 <45 130-278 180-400 2×160
HVI 1040 <40 <45 180-284 250-440 2×200
HVI 1263 <50 <55 320-498 370-585 2×315
Model Hard material Soft material Sand Shaping Sand Making Motor Power（kw）
Max.Feeding Size （mm） Throughput（t/h）
HVI 0815  <30 <35  50-140  90-230  2×75
HVI 0818 <30 <35 60-190 110-283 2×90
HVI 0922 <35 <40 70-210 150-330 2×110
HVI 0926 <35 <40 85-240 170-380 2×132
HVI 1032 <40 <45 130-278 180-400 2×160
HVI 1040 <40 <45 180-284 250-440 2×200
HVI 1263 <50 <55 320-498 370-585 2×315

Why Choose Our?

HongXing Machinery manufactures a wide range of equipment, including crushers, mills, ore beneficiation machines, briquette making machines, rotary kilns, and more. Our equipment is designed to ensure decades of productive capacity.
