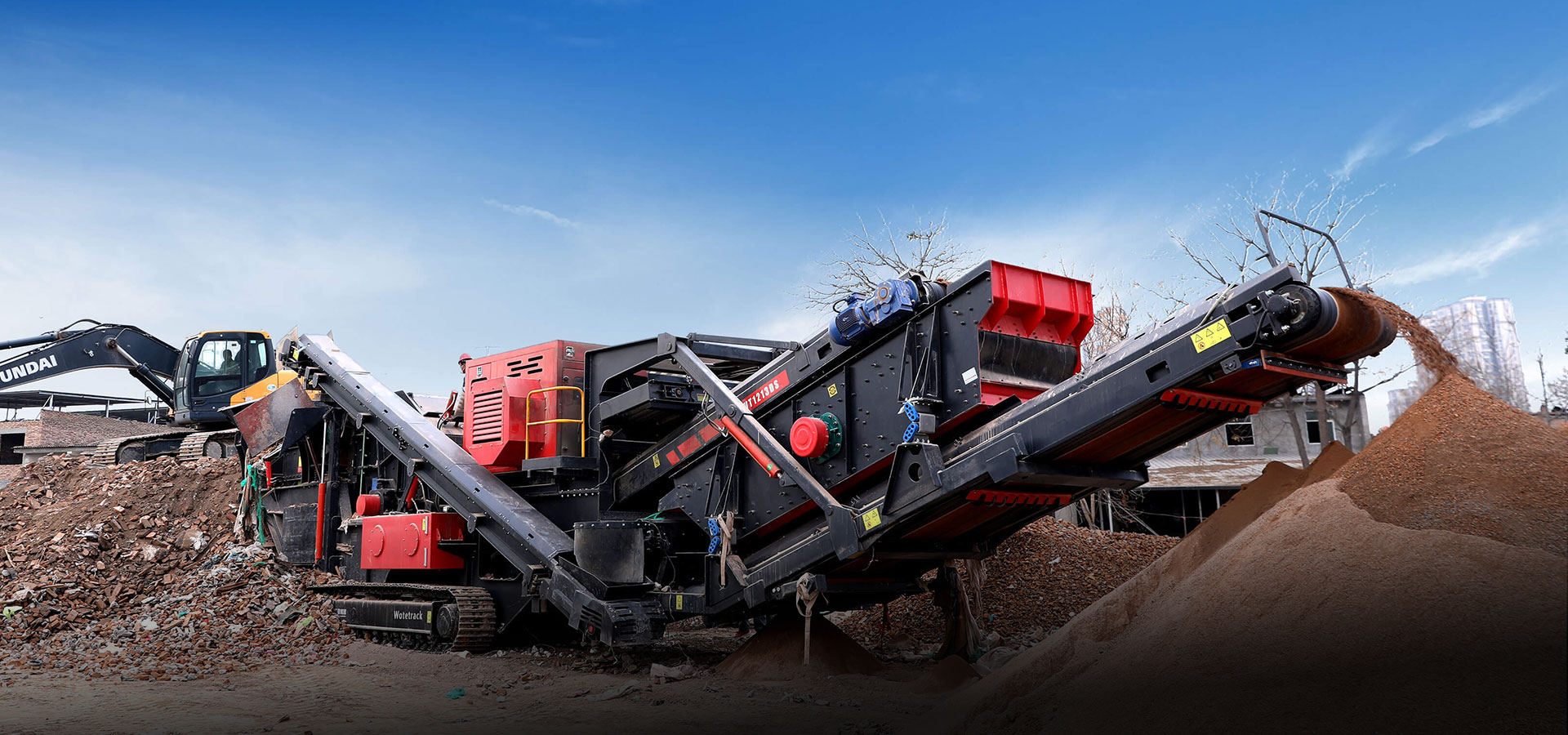

Mobile Crusher Machine

Mobile Crusher Machine

Capacity: 50-400t/h

Feeding Size: ≤800mm

Get A Quote Now

Introduction

Our tracked mobile crushing and screening plant is a mobile crushing and screening equipment independently developed by our company, incorporating technology from well-known mining machinery enterprises and adapting to domestic conditions. The machine uses a hydraulic system to drive the tracks, ensuring smooth operation and adaptability to various complex work site conditions. It is widely used in mining, stone quarrying, highway (railway) bridge construction, urban construction waste treatment, and many other fields. We also offer a full range of wheeled mobile crushers for your selection.

Applied Material

It has a wide range of applications and can crush more than 200 kinds of materials.

Material image

Product Category

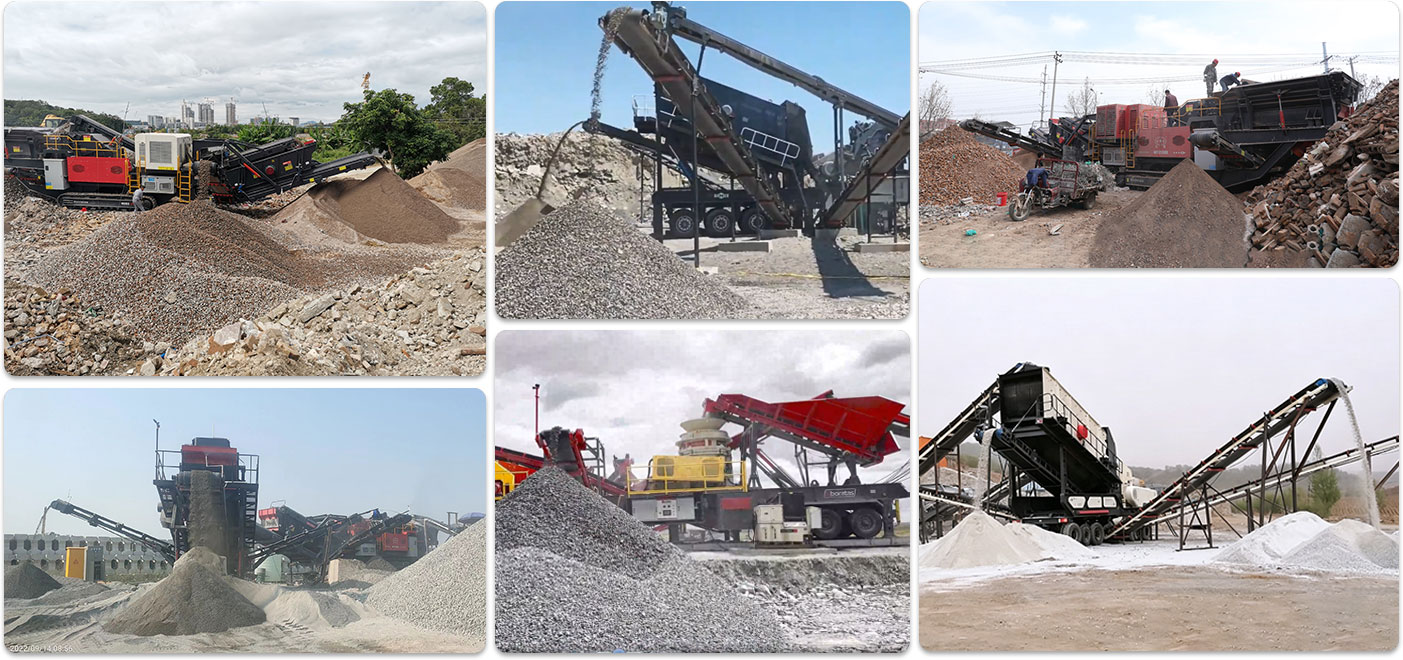

Global Project Cases

Product Parameters

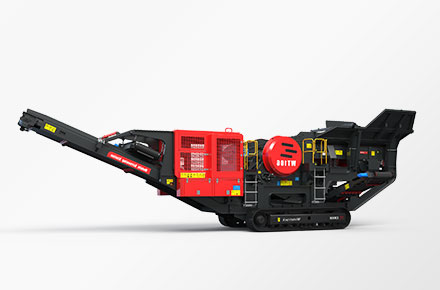

Mobile Jaw Crusher

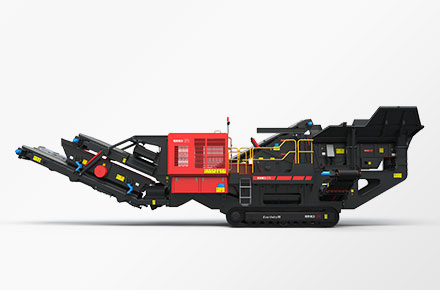

Mobile Impact Crusher

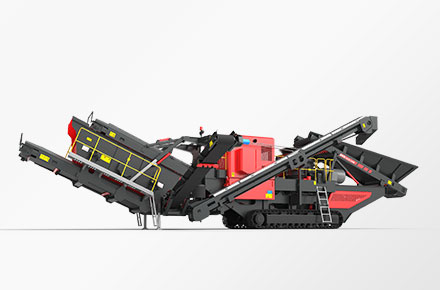

Mobile Cone Crusher

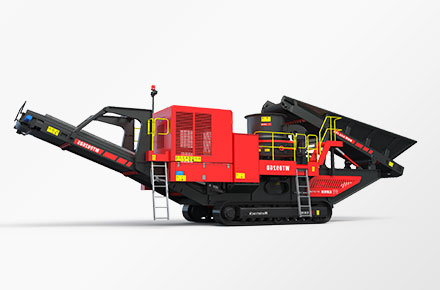

Mobile Sand Making Machine

Model WT96 WT106 WT120
Dimensions of Transmission Devices Length 14200mm 14900mm 15200mm
Width 2900mm 3000mm 3200mm
Height 3470mm 3600mm 3700mm
Weight 38t 50t 65t
Feeder Hopper Volume 5m³ 5m³ 6m³
Loading Height 3900mm 4100mm 4300mm
FeederModel GZDT3895 GZDT1145 GZDT1245
Unearthed Belt Conveyors Dimensions(Width×Length) 800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Crusher Model CJ96 CJ106 CJ120
Inlet Dimensions 930×580mm 1060×700mm 1200×870mm
Max.Feeding Size 480mm 560mm 700mm
Main Belt Conveyor Dimensions(Width×Length) 800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Iron Remover Model RCYQ-8 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 112.9kw 141.4kw 196.2kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Model WT96 and WT106

Model WT96 WT106
Dimensions of Transmission Devices Length 14200mm 15200mm
Width 2900mm 3000mm
Height 3470mm 3600mm
Weight 38t 50t
Feeder Hopper Volume 5m³ 6m³
Loading Height 3900mm 4100mm
FeederModel GZDT3895 GZDT1145
Unearthed Belt Conveyors Dimensions(Width×Length) 800×9000mm 1200×12000mm
Dumping Height 3100mm 3200mm
Crusher Model CJ96 CJ120
Inlet Dimensions 930×580mm 1060×700mm
Max.Feeding Size 480mm 560mm
Main Belt Conveyor Dimensions(Width×Length) 800×9000mm 1200×12000mm
Dumping Height 3100mm 3200mm
Iron Remover Model RCYQ-8 RCYQ-10
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 112.9kw 196.2kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT120

Model WT120
Dimensions of Transmission Devices Length 15200mm
Width 3200mm
Height 3700mm
Weight 65t
Feeder Hopper Volume 6m³
Loading Height 4300mm
FeederModel GZDT1245
Unearthed Belt Conveyors Dimensions(Width×Length) 1200×12000mm
Dumping Height 3400mm
Crusher Model CJ120
Inlet Dimensions 1200×870mm
Max.Feeding Size 700mm
Main Belt Conveyor Dimensions(Width×Length) 1200×12000mm
Dumping Height 3400mm
Iron Remover Model RCYQ-10
Diesel Engine Power 132kw
Manufacturer Carter Perkins
The Main Machine Power 196.2kw
Ways of Controlling Wired/Wireless (optional)
Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power ○ 6.12kw ○ 6.12kw ○
Sieve Dimensions ○ 1500×3600 ○ 1500×4200 ○
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ 1000×5800mm ○ 1000×6200mm ○
Dumping Height ○ 2900mm ○ 3000mm ○
Transferring Belt Conveyor Dimensions(Width×Length) ○ 650×2500mm ○ 650×2800mm ○
Dumping Height ○ 1400mm ○ 1400mm ○
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ 500×8000mm ○ 500×9200mm ○
Dumping Height ○ 4200mm ○ 4500mm ○
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Model WT110 and WT110S

Model WT110 WT110S
Dimensions of Transmission Devices Length 14000mm 17000mm
Width 3000mm 3200mm
Height 3600mm 3600mm
Weight 40t 45t
Feeder Hopper Volume 3m³ 5m³
Loading Height 3900mm 4000mm
Primary Screen Power 5.2kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm
Crusher Model CI1110M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm
Max.Feeding Size 400mm 400mm
The Feeder at the Bottom Hopper Volume 0.8m³ 1.5m³
Power 5.2kw 5.2kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1200×11000mm
Dumping Height 3300mm 3300mm
Secondary Screen Power ○ ○
Sieve Dimensions ○ 1500×3600
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ ○
Dumping Height ○ 2900mm
Transferring Belt Conveyor Dimensions(Width×Length) ○ ○
Dumping Height ○ 1400mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ ○
Dumping Height ○ 4200mm
Iron Remover Model RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 253kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT1213 and WT1213S

Model WT1213 WT1213S
Dimensions of Transmission Devices Length 15500mm 17000mm
Width 3200mm 3600mm
Height 3800mm 3800mm
Weight 53t 60t
Feeder Hopper Volume 5m³ 5m³
Loading Height 3900mm 4100mm
Primary Screen Power 6.12kw 6.12kw
Sieve Dimensions 1140×924mm 1140×924mm
Crusher Model CI1213M CI1315M
Inlet Dimensions 1320×900mm 1320×900mm
Max.Feeding Size 500mm 500mm
The Feeder at the Bottom Hopper Volume 1m³ 1.5m³
Power 5.2kw 5.2kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9900mm 1200×11000mm
Dumping Height 3500mm 3500mm
Secondary Screen Power ○ ○
Sieve Dimensions ○ 1500×4200
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ ○
Dumping Height ○ 3000mm
Transferring Belt Conveyor Dimensions(Width×Length) ○ ○
Dumping Height ○ 1400mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ ○
Dumping Height ○ 4500mm
Iron Remover Model RCYQ-10 RCYQ-10
Diesel Engine Power 106kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 304kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT1315

Model WT1315
Dimensions of Transmission Devices Length 17000mm
Width 3200mm
Height 3800mm
Weight 65t
Feeder Hopper Volume 5m³
Loading Height 4000mm
Primary Screen Power 6.12kw
Sieve Dimensions 1240×930mm
Crusher Model CI1315M
Inlet Dimensions 1540×900mm
Max.Feeding Size 600mm
The Feeder at the Bottom Hopper Volume 1.5m³
Power 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm
Dumping Height 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1200×11000mm
Dumping Height 3800mm
Secondary Screen Power ○
Sieve Dimensions ○
Belt Conveyors at the Bottom Dimensions(Width×Length) ○
Dumping Height ○
Transferring Belt Conveyor Dimensions(Width×Length) ○
Dumping Height ○
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○
Dumping Height ○
Iron Remover Model RCYQ-10
Diesel Engine Power 132kw
Manufacturer Carter Perkins
The Main Machine Power 366kw
Ways of Controlling Wired/Wireless (optional)
Model WT160SC WT250SC WT300HPM WT400HPM
Dimensions of Transmission Devices Length 16800mm 19000mm 19000mm 19500mm
Width 3500mm 3600mm 3900mm 3900mm
Height 3700mm 3800mm 3800mm 3800mm
Weight 50t 60t 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³ 3m³ 3m³
Loading Height 2600m 2600m 2600m 2800m
Loading Width 1900mm 1900mm 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm 1000×6300mm 1200×6500mm
Crusher Model SC160 SC250 HP300 HP400
Inlet Dimensions 75-360mm 75-450mm 60-200mm 68-280mm
Max.Feeding Size 360mm 450mm 200mm 280mm
Min. Discharging Size 8-25mm 8-35mm 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×10000mm 1000×10000mm 1000×11000mm
Dumping Height 3100mm 3490mm 3490mm 3690mm
Secondary Screen Dumping Height 4200mm 4200mm 4400mm 4400mm
Model HX1536 HX1536 HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×5600mm 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm 650×11000mm 650×11000mm
Dumping Height 4200mm 4200mm 4400mm 4400mm
Diesel Engine Power 96kw 132kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 297.12kw 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Model WT160SC and WT250SC

Model WT160SC WT250SC
Dimensions of Transmission Devices Length 16800mm 19500mm
Width 3500mm 3600mm
Height 3700mm 3800mm
Weight 50t 60t
Belt Conveyor Hopper Volume 3m³ 3m³
Loading Height 2600m 2600m
Loading Width 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm
Crusher Model SC160 HP400
Inlet Dimensions 75-360mm 75-450mm
Max.Feeding Size 360mm 450mm
Min. Discharging Size 8-25mm 8-35mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×11000mm
Dumping Height 3100mm 3490mm
Secondary Screen Dumping Height 4200mm 4400mm
Model HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm
Dumping Height 4200mm 4200mm
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT300HPM and WT400HPM

Model WT300HPM WT400HPM
Dimensions of Transmission Devices Length 19000mm 19500mm
Width 3900mm 3900mm
Height 3800mm 3800mm
Weight 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³
Loading Height 2600m 2800m
Loading Width 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1200×6500mm
Crusher Model HP300 HP400
Inlet Dimensions 60-200mm 68-280mm
Max.Feeding Size 200mm 280mm
Min. Discharging Size 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×11000mm
Dumping Height 3490mm 3690mm
Secondary Screen Dumping Height 4400mm 4400mm
Model HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×11000mm 650×11000mm
Dumping Height 4400mm 4400mm
Diesel Engine Power 106kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)
Model WT0818 WT0926
Dimensions of Transmission Devices Length 14000mm 14000mm
Width 3200mm 3200mm
Height 3600mm 3600mm
Weight 30t 35t
Feeder Hopper Volume 3m³ 3m³
Loading Height 2600mm 2600mm
Models and Dimensions of Belt Conveyors B1000×6000mm B1000×6000mm
Crusher Model HVI0818 HVI0926
Feeding Size 35mm 40mm
Double Motor Power 2×90kw 2×132kw
Main Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×10000mm
Dumping Height 3200mm 3200mm
Diesel Engine Power 75kw 75kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 202.5kw 286.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)
Model WT0818 WT0926
Dimensions of Transmission Devices Length 14000mm 14000mm
Width 3200mm 3200mm
Height 3600mm 3600mm
Weight 30t 35t
Feeder Hopper Volume 3m³ 3m³
Loading Height 2600mm 2600mm
Models and Dimensions of Belt Conveyors B1000×6000mm B1000×6000mm
Crusher Model HVI0818 HVI0926
Feeding Size 35mm 40mm
Double Motor Power 2×90kw 2×132kw
Main Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×10000mm
Dumping Height 3200mm 3200mm
Diesel Engine Power 75kw 75kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 202.5kw 286.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)
About

Get Price And support

rovide customized solution according to your specific needs. We are responsible for each customer and dedicated to realize win-win.

We will strictly protect the privacy of users'personal information and never disclose it.

Copyright© China Henan Hongxing Mining Machinery Co., Ltd.All rights reserved Privacy Policy
