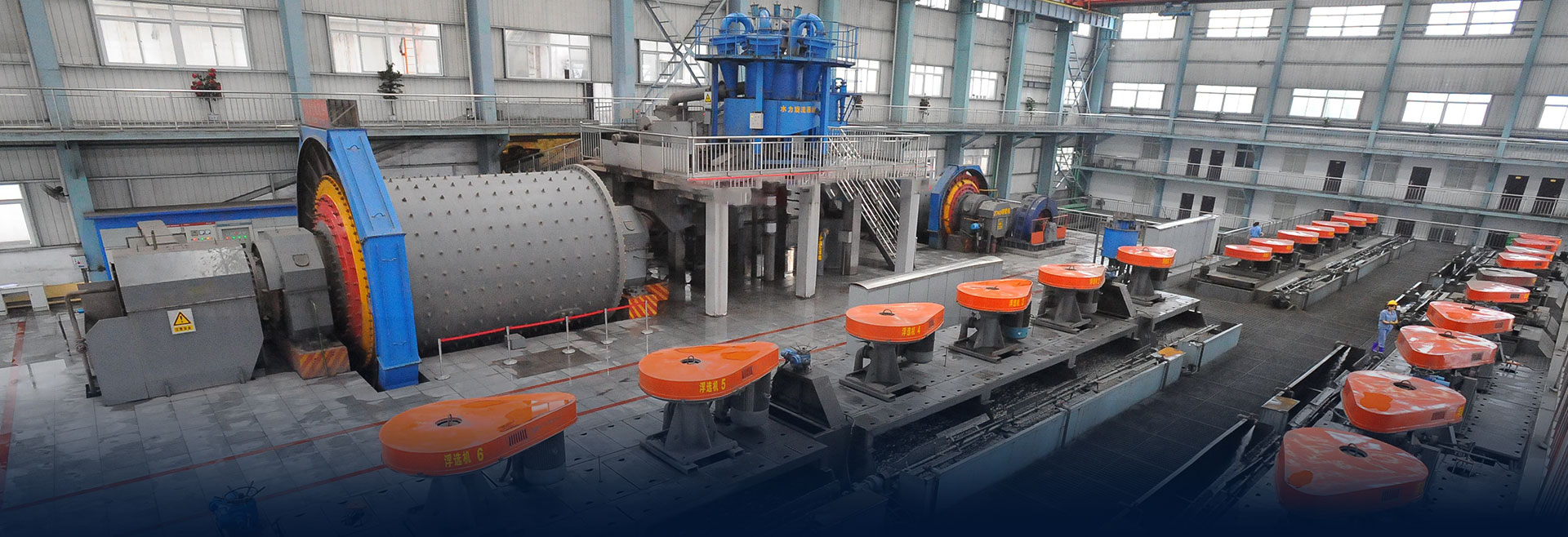

Mineral processing production line

Mineral processing production line

Get Price Now

Production capacity: 10-1000t/h

Feeding size: ＜25mm

Product Introduction

A mineral processing production line is used to separate and purify ores. This line utilizes physical and chemical methods to process raw ore through a series of processes to obtain the desired metal or ore products. Commonly used mineral processing methods include gravity separation, flotation, magnetic separation, and electrostatic separation. The design and operation of a mineral processing production line must consider multiple factors, including ore characteristics, product requirements, and environmental protection requirements.

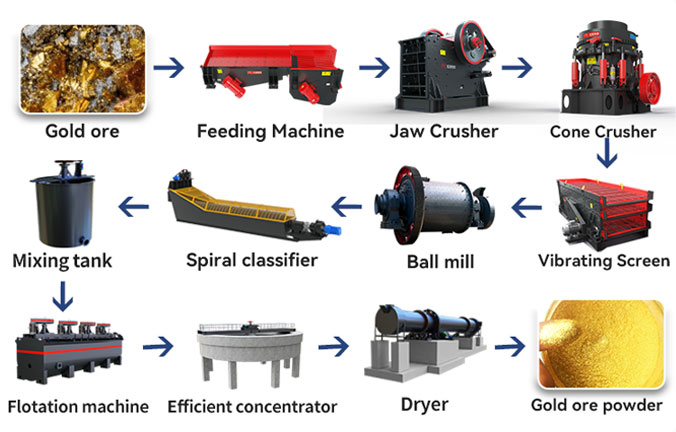

Equipment Composition

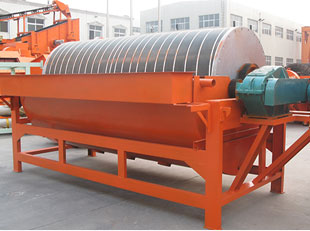

The equipment consists of a jaw crusher, vibrating screen, ball mill, classifier, magnetic separator, flotation machine, mixing tank, thickener, and dryer.

Equipment Composition

Advantages

Hot selling products

High-quality products are our core competitiveness

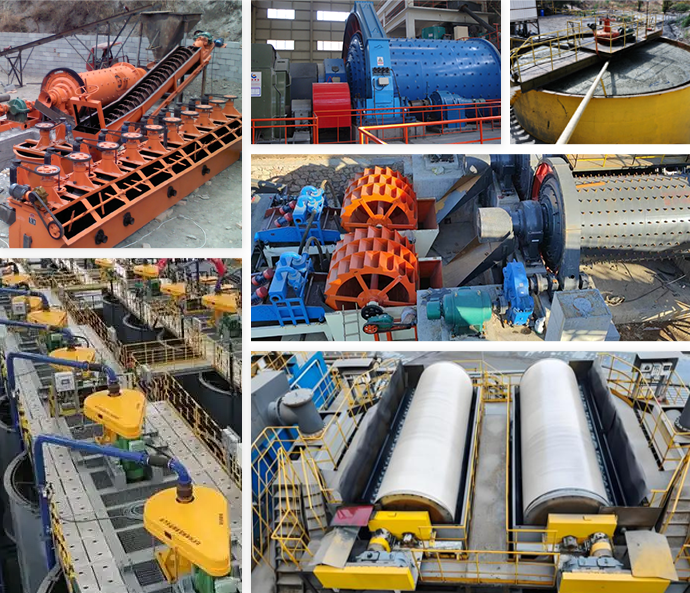

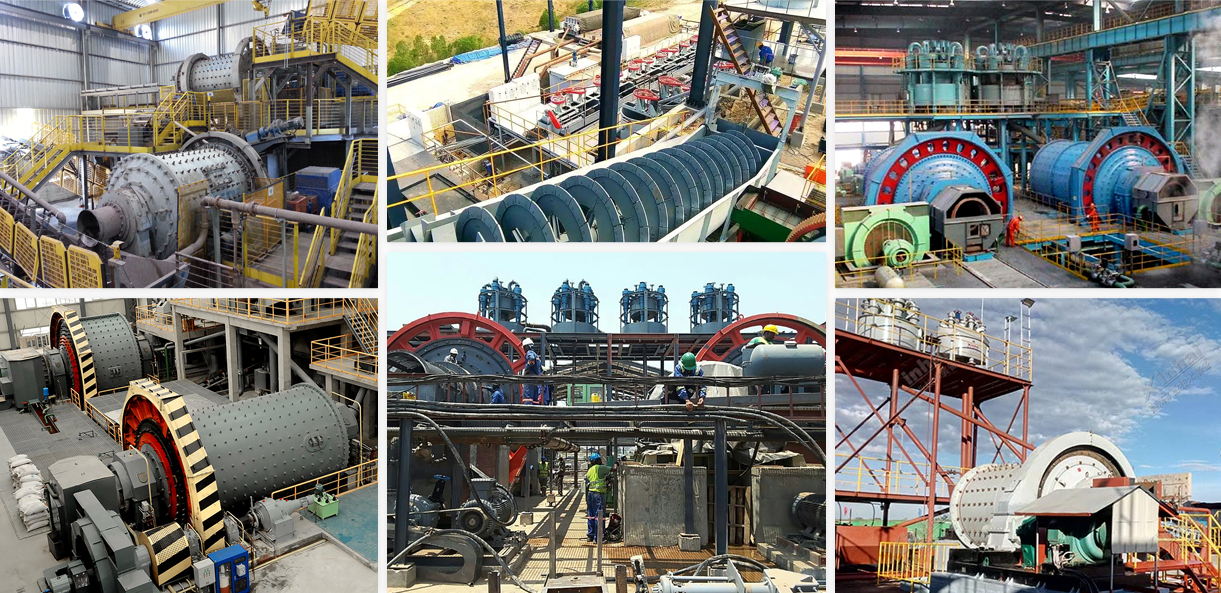

Worldwide Partnership

Our ore processing production lines have been exported to more than 120 countries, including Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Zambia, South Africa, Uganda, Peru, and Chile.

Product Parameters

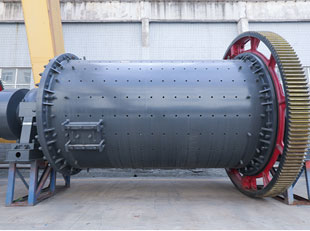

Ball mill

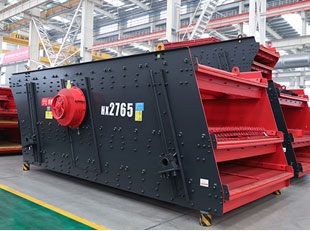

Vibrating screen

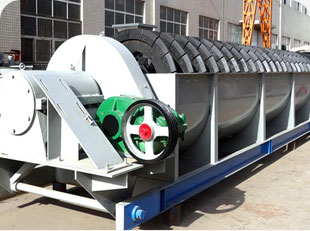

Classifier

Model Shell rotation speed
（r/min）		 Ball load
(t)		 Feeding size
(mm)		 Discharging size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Model Feeding size
(mm)		 Capacity
(t/h)
Ф900×1800 <20 0.65-2
Ф900×3000 <20 1.1-3.5
Ф1200×2400 <25 1.5-4.8
Ф1200×3000 <25 1.6-5
Ф1200×4500 <25 1.6-5.8
Ф1500×3000 <25 2-5
Ф1500×4500 <25 3-6
Ф1500×5700 <25 3.5-6
Ф1830×3000 <25 4-10
Ф1830×4500 <25 4.5-12
Ф1830×6400 <25 6.5-15
Ф1830×7000 <25 7.5-17
Ф2100×3000 <25 6.5-36
Ф2100×4500 <25 8-43
Ф2100×7000 <25 12-48
Ф2200×4500 <25 9-45
Ф2200×6500 <25 14-26
Ф2200×7000 <25 15-28
Ф2200×7500 <25 15-30
Ф2400×3000 <25 7-50
Ф2400×4500 <25 8.5-60
Ф2700×4000 <25 22-80
Ф2700×4500 <25 26-90
Ф3200×4500 <25 As per process
conditions
Ф3600×4500 <25 As per process
conditions
Ф3600×6000 <25 As per process
conditions
Ф3600×8500 <25 45.8-256
Ф4000×5000 <25 45-208
Ф4000×6000 <25 65-248
Ф4000×6700 <25 75-252
Ф4500×6400 <25 84-306
Ф5030×6400 <25 98-386
Ф5030×8300 <25 118-500
Ф5500×8500 <25 148-615
Model Sieve Layer Sieve Area
(㎡)		 Mesh Size
(mm)		 Max.Feeding Size
(mm)		 Processing capacity
(m³/h)		 Vibrating Frequency
(r/min)		 Double Amplitude
(mm)		 Power
(kw)		 Sieve Obliquity
(°)		 Sieve Specification
(mm)		 Dimensions
(L×W×H)
(mm)
2YK1230 2 7.2 4-50 200 12-78 970 6 6P 7.5 20 1200×3000 3530×1885×920
3YK1230 3 10.8 4-50 200 13-80 970 6 6P 7.5 20 1200×3000 3675×1885×1320
2YK1237 2 8.88 4-50 200 15-86 970 6 6P 7.5 20 1200×3700 4230×1990×920
3YK1237 3 13.32 4-50 200 16-90 970 6 6P 7.5 20 1200×3700 4375×1990×1320
2YK1548 2 14.4 5-50 200 22.5-162 970 6 6P 11 20 1500×4800 5355×2195×1030
3YK1548 3 21.6 5-50 200 22.5-162 970 6 6P 15 20 1500×4800 6055×2195×1740
4YK1548 4 28.8 5-50 200 22.5-162 970 6 6P 18.5 20 1500×4800 6195×2195×2120
2YK1854 2 19.44 5-80 200 32-312 970 6 6P 22 20 1800×5400 6515×2555×1370
3YK1854 3 29.16 5-80 200 32-312 970 6 6P 22 20 1800×5400 6655×2555×1750
4YK1854 4 38.88 5-80 200 32-336 970 6 6P 22 20 1800×5400 6790×2555×2130
2YK2160 2 25.2 5-100 200 50-475 970 6 6P 30 20 2100×6000 7200×2945×1580
3YK2160 3 37.8 5-100 200 50-475 970 6 6P 30 20 2100×6000 7340×2945×1980
4YK2160 4 50.4 5-100 200 50-497 970 6 6P 37 20 2100×6000 7490×2945×2380
2YK2460 2 28.8 5-100 200 65-550 970 6 6P 30 20 2400×6000 7200×3200×1580
3YK2460 3 43.2 5-100 200 70-620 970 6 6P 37 20 2400×6000 7340×3200×1980
4YK2460 4 57.6 5-100 200 80-680 970 6 6P 45 20 2400×6000 7490×3200×2380
2YK2866 2 31 5-100 200 70-650 970 6 6P 37 20 2800×5600 6950×3610×1790
3YK2866 3 47 5-100 200 80-700 970 6 6P 45 20 2800×5600 7130×3610×2270
4YK2866 4 62 5-100 200 90-750 970 6 6P 55 20 2800×5600 7300×3610×2750
2YK2873 2 39.2 5-100 200 70-680 970 6 6P 37 20 2800×6500 7850×3587×1790
3YK2873 3 58.8 5-100 200 80-720 970 6 6P 45 20 2800×6500 8025×3587×2270
4YK2873 4 58.8 5-100 200 90-950 970 6 6P 55 20 2800×6500 8200×3587×2750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Sieve Layer Sieve Area
(㎡)		 Processing capacity
(m³/h)
2YK1230 2 7.2 12-78
3YK1230 3 10.8 13-80
2YK1237 2 8.88 15-86
3YK1237 3 13.32 16-90
2YK1548 2 14.4 22.5-162
3YK1548 3 21.6 22.5-162
4YK1548 4 28.8 22.5-162
2YK1854 2 19.44 32-312
3YK1854 3 29.16 32-312
4YK1854 4 38.88 32-336
2YK2160 2 25.2 50-475
3YK2160 3 37.8 50-475
4YK2160 4 50.4 50-497
2YK2460 2 28.8 65-550
3YK2460 3 43.2 70-620
4YK2460 4 57.6 80-680
2YK2866 2 31 70-650
3YK2866 3 47 80-700
4YK2866 4 62 90-750
2YK2873 2 39.2 70-680
3YK2873 3 58.8 80-720
4YK2873 4 58.8 90-950

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Spiral
Diameter
(mm)		 Trough
Length
(mm)		 Spiral
rotate
speed
(r/min)		 Processing
capacity（t/d）		 Motor
Power
（kw）		 Dimensions
（mm≤）
Sand
-return		 Overflow For
driving		 For
lifting 		 Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970
FC-24 14130 6800 490 18.5 4 16580 2930 7190
2FG-24 9130 13600 1160 30 6 12710 5430 5690
2FC-24 14130 13700 910 37 8 17710 5430 8000
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680
Model Spiral
Diameter
(mm)		 Spiral
rotate
speed
(r/min)
FG-3 300 12-30
FG-5 500 8-12.5
FG-7 750 6-10
FG-10 1000 5-8
FC-10
FG-12 1200 4-6
FC-12
2FG-12
2FC-12
FG-15 1500 4-6
FC-15
2FG-15
2FC-15
FG-20 2000 3.6-5.5
FC-20
2FG-20
2FC-20
FG-24 2400 3.67
FC-24
2FG-24
2FC-24
2FG-30 3000 3.2
2FC-30
