Production capacity: 0.65-615t/h
Feeding size: ≤25mm

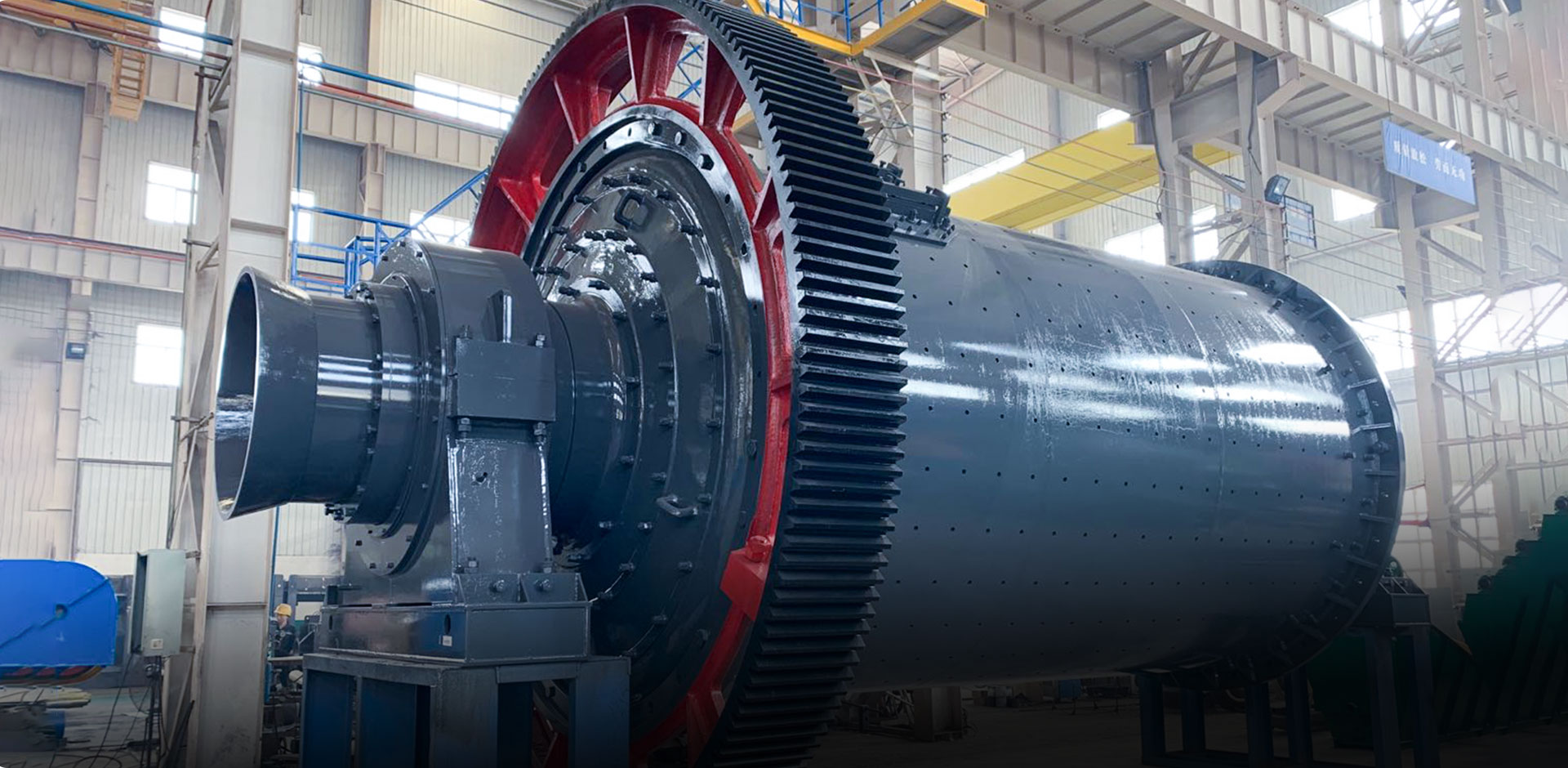

Ball mills are efficient and reliable industrial grinding equipment, widely used in mineral processing, building materials, chemical, and power industries. This equipment uses grinding media (such as steel balls) inside the chamber to impact and grind materials, achieving fine grinding. Its core advantages lie in its large throughput, stable operation, uniform output particle size, and ease of adjustment.
Widely used in various metal ores, non-metal ores, cement and building materials, chemical raw materials and other fields.
Our company has extensive experience in solution design. We will assign professional engineers to tailor a scientific, intelligent, and environmentally friendly mineral processing solution based on your materials and production needs.
The Choice Of 100,000+ Customers
| Model | Shell rotation speed （r/min） | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Total weight (t) |
| Ф900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Ф900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Ф1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Ф1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Ф1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Ф1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Ф2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Ф2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Ф2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Ф2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| Ф2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 22-80 | 380 | 95 |
| Ф2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 26-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | <25 | 0.074-0.4 | As per process conditions | 630 | 149 |
| Ф3600×4500 | 17 | 90 | <25 | 0.074-0.4 | As per process conditions | 850 | 169 |
| Ф3600×6000 | 17 | 110 | <25 | 0.074-0.4 | As per process conditions | 1250 | 198 |
| Ф3600×8500 | 18 | 131 | <25 | 0.074-0.4 | 45.8-256 | 1800 | 260 |
| Ф4000×5000 | 16.9 | 121 | <25 | 0.074-0.4 | 45-208 | 1500 | 230 |
| Ф4000×6000 | 16.9 | 146 | <25 | 0.074-0.4 | 65-248 | 1600 | 242 |
| Ф4000×6700 | 16.9 | 149 | <25 | 0.074-0.4 | 75-252 | 1800 | 249 |
| Ф4500×6400 | 15.6 | 172 | <25 | 0.074-0.4 | 84-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | <25 | 0.074-0.4 | 98-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | <25 | 0.074-0.4 | 118-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | <25 | 0.074-0.4 | 148-615 | 4500 | 525 |
| Model | Feeding size (mm) |
Capacity (t/h) |
| Ф900×1800 | <20 | 0.65-2 |
| Ф900×3000 | <20 | 1.1-3.5 |
| Ф1200×2400 | <25 | 1.5-4.8 |
| Ф1200×3000 | <25 | 1.6-5 |
| Ф1200×4500 | <25 | 1.6-5.8 |
| Ф1500×3000 | <25 | 2-5 |
| Ф1500×4500 | <25 | 3-6 |
| Ф1500×5700 | <25 | 3.5-6 |
| Ф1830×3000 | <25 | 4-10 |
| Ф1830×4500 | <25 | 4.5-12 |
| Ф1830×6400 | <25 | 6.5-15 |
| Ф1830×7000 | <25 | 7.5-17 |
| Ф2100×3000 | <25 | 6.5-36 |
| Ф2100×4500 | <25 | 8-43 |
| Ф2100×7000 | <25 | 12-48 |
| Ф2200×4500 | <25 | 9-45 |
| Ф2200×6500 | <25 | 14-26 |
| Ф2200×7000 | <25 | 15-28 |
| Ф2200×7500 | <25 | 15-30 |
| Ф2400×3000 | <25 | 7-50 |
| Ф2400×4500 | <25 | 8.5-60 |
| Ф2700×4000 | <25 | 22-80 |
| Ф2700×4500 | <25 | 26-90 |
| Ф3200×4500 | <25 | As per process conditions |
| Ф3600×4500 | <25 | As per process conditions |
| Ф3600×6000 | <25 | As per process conditions |
| Ф3600×8500 | <25 | 45.8-256 |
| Ф4000×5000 | <25 | 45-208 |
| Ф4000×6000 | <25 | 65-248 |
| Ф4000×6700 | <25 | 75-252 |
| Ф4500×6400 | <25 | 84-306 |
| Ф5030×6400 | <25 | 98-386 |
| Ф5030×8300 | <25 | 118-500 |
| Ф5500×8500 | <25 | 148-615 |
Henan HongXing Mining Machinery Co., Ltd., has been in existence for more than40 years since its establishment. lt has four production bases in China and itsproducts are sold to more than 160 countries around the world.
Reliable Machine Quality
Perfect Service and Technical Support
Trustworthy Mine Brand
Low Investment Cost
01 We guarantee that our products are all up to standards set formining machinery.
02 We will deliver products timely by contract.
03 We will supply you with installation drawings, specifications andoperation manual.
04 We offer lifetime warranty and components for products.
