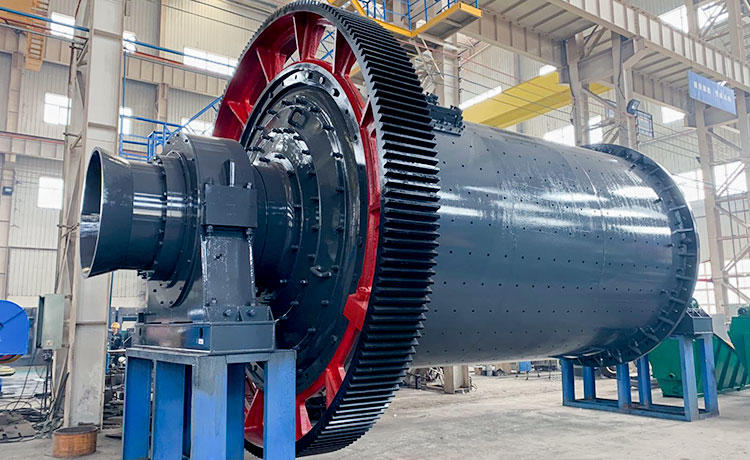

Ball Mill

Ball Mill

Ball mill is widely used for powder grinding of stones and ores, It is widely used for mineral grinding such as iron ore, copper ore, gold ore, cement, lime, slag, silica,bauxite, calcite, etc.

Capacity: 1-615t/h

Feeding size: ≤25mm

Chat Online Free Quotation
Working Principle Selection & Quote Technical Parameters Customer Cases Advantages Contact Us

Processing Materials

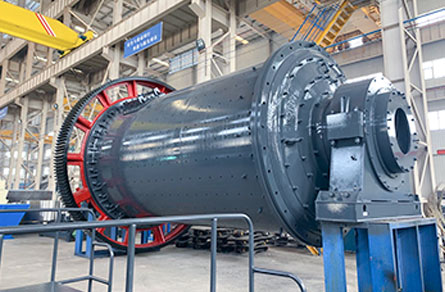

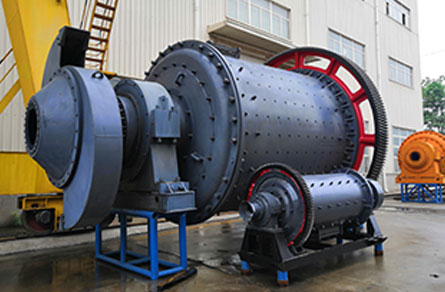

The ball mill can wet or dry grind ores and other materials, such as gold ore, copper ore, iron ore, quartz, calcite, feldspar and more than 200 kinds of ore materials. The output particle size can be adjusted within 0.075-0.4mm. It has the characteristics of high grinding efficiency, fine particle size, strong adaptability and large output.

Processing Materials

Working Principle

The material enters the first silo of the mill uniformly through the feeding hollow shaft. The silo has a stepped lining or corrugated lining, which contains various specifications of steel balls. The rotation of the cylinder produces centrifugal force to bring the steel balls to a certain level. After falling down at a high level, it has a heavy impact and grinding effect on the material. After the material reaches rough grinding in the first silo, it enters the second silo through a single-layer partition board. The silo is set with a flat lining plate and contains steel balls to grind the material further. The powder is discharged through the discharge grate plate to complete the grinding operation.

Ball Mill Selection & Quote

Specific price is determined by many factors, such as ball mill types, models, etc. Message us for a free quote.

Product Parameters

Ball Mill

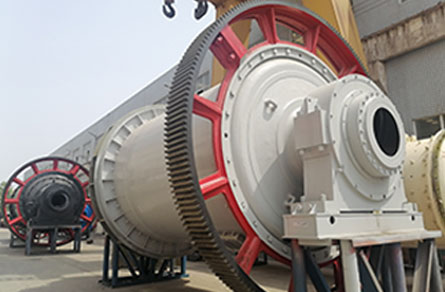

Ceramic Ball Mill

Rod Mill

Model Shell rotation speed
（r/min）		 Ball load
(t)		 Feeding size
(mm)		 Discharging size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Model Feeding size
(mm)		 Capacity
(t/h)
Ф900×1800 <20 0.65-2
Ф900×3000 <20 1.1-3.5
Ф1200×2400 <25 1.5-4.8
Ф1200×3000 <25 1.6-5
Ф1200×4500 <25 1.6-5.8
Ф1500×3000 <25 2-5
Ф1500×4500 <25 3-6
Ф1500×5700 <25 3.5-6
Ф1830×3000 <25 4-10
Ф1830×4500 <25 4.5-12
Ф1830×6400 <25 6.5-15
Ф1830×7000 <25 7.5-17
Ф2100×3000 <25 6.5-36
Ф2100×4500 <25 8-43
Ф2100×7000 <25 12-48
Ф2200×4500 <25 9-45
Ф2200×6500 <25 14-26
Ф2200×7000 <25 15-28
Ф2200×7500 <25 15-30
Ф2400×3000 <25 7-50
Ф2400×4500 <25 8.5-60
Ф2700×4000 <25 22-80
Ф2700×4500 <25 26-90
Ф3200×4500 <25 As per process
conditions
Ф3600×4500 <25 As per process
conditions
Ф3600×6000 <25 As per process
conditions
Ф3600×8500 <25 45.8-256
Ф4000×5000 <25 45-208
Ф4000×6000 <25 65-248
Ф4000×6700 <25 75-252
Ф4500×6400 <25 84-306
Ф5030×6400 <25 98-386
Ф5030×8300 <25 118-500
Ф5500×8500 <25 148-615
Model Feeding capacity
（t/time）		 Shell rotation speed
（r/min）		 Reference motor
（kw）		 Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75
Model Feeding
capacity
（t/time）		 Shell
rotation
speed
（r/min）
600×700 0.05 50
800×600 0.075 42
900×1200 0.2 38.5
1300×1500 0.5 33
1500×1800 1.2 28.5
1800×2000 1.5 24
2600×2800 5 16.5
3000×3800 10 14.5
3200×4600 15 13.5
Model
Shell Specifications （mm）
 Shell rotation speed
（r/min）		 Feeding size
(mm)		 Discharging size
(mm)		 Processing capacity
(t/h)		 Power
(kw)		 Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model Feeding
size
(mm)		 Processing
capacity
(t/h)
MBS0918 ≤25 0.62-3.2
MBS0924 ≤25 0.81-4.3
MBS1224 ≤25 1.1-4.9
MBS1530 ≤25 2.4-7.5
MBS1830 ≤25 4.8-11.6
MBS2130 ≤25 14-35
MBS2136 ≤25 19-43
MBS2430 ≤50 25-65
MBS2736 ≤50 32-86
MBS2740 ≤50 32-92
MBS3245 ≤50 64-180

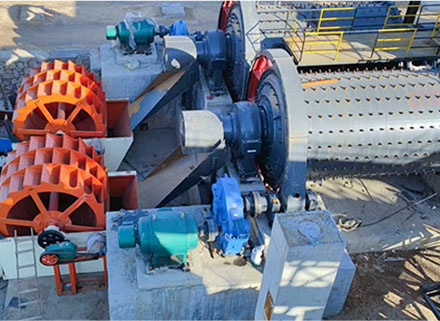

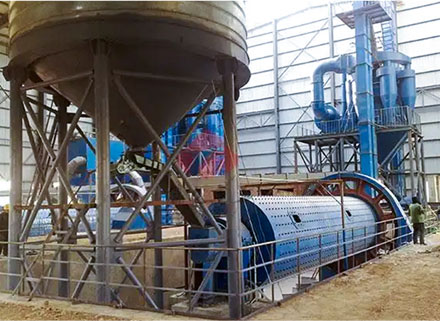

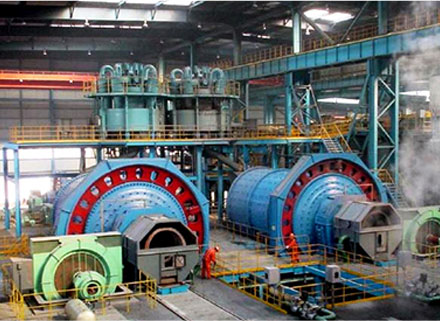

Real Customer Cases

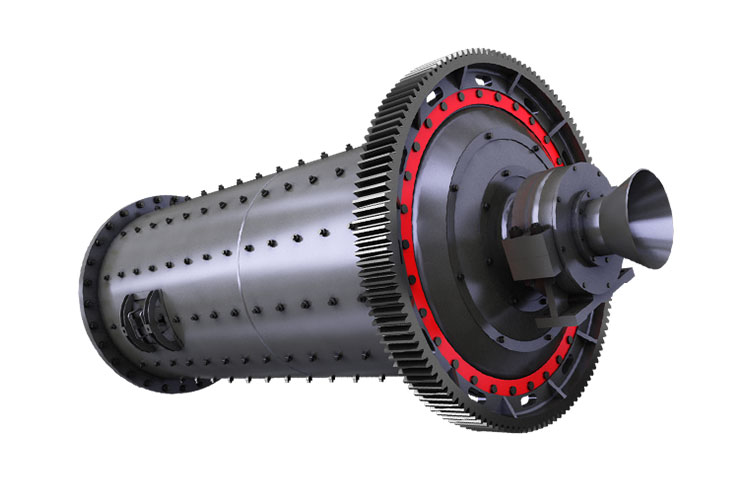

Advantages of Ball Mill

  • High Grinding Efficiency And Good Lining Quality

    The lining plate and grinding body are made of alumina ceramics, quartz, SILEX or special materials, and the hard minerals are designed with no iron pollution.

  • Use A Closed System To Reduce Dust

    The ultra-fine ball mill and classifier form a closed system, with negative pressure transportation and small dust, reducing harm to the human body.

  • Save Energy Consumption

    It adopts full hydraulic operation, which is easy to use and easy to realize automation. Its reliability and lifespan are greatly improved.

  • Exceptional Reliability

    The probability of failure is very low, which reduces the customer's operating costs and maintenance costs to a certain extent.

Advantages of Ball Mill
